LW5D Series change-over switch

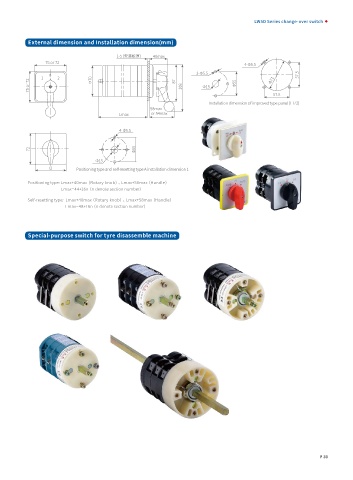

           External dimension and Installation dimension(mm)

                                        1-5（安装板厚）    40max
                75 or 72
                                                                                   4-Φ5.5
                                                                   3-Φ5.5
                  0  2          Φ70                                                         Φ71       57.5
               1
           75 or 72                                         87  108  Φ15        Φ55
                                                                                             57.5
                                                                       Installation dimension of improved type panel (□72)
                                                    58max
                                         Lmax        or 54max

                                         4-Φ5.5


           72                                  Φ55

                                 Φ15
                 72        Positioning type and self-resetting type A installation dimension 1

          Positioning type: Lmax+40max（Rotary knob）、Lmax+58max（Handle）
                                           Lmax=44+16n（n denote section number）
          Self-resetting type:  Lmax+40max（Rotary knob）、Lmax+58max（Handle）
                                             Lmax=48+16n（n denote section number）




          Special-purpose switch for tyre disassemble machine
