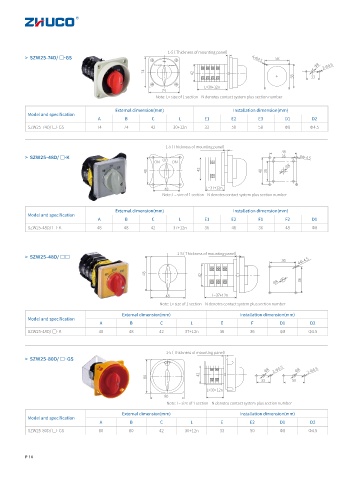

Page 18 - WENZHOU ZHUOCHAO ELECTRIC CO.,LTD.

1-5（ Thickness of mounting panel）
> SZW25-74D/ □·GS 4-Φ4.5 58

Stop
Φ8 2-Φ4.5
Low speed
Fast speed
74 42
58 33
L=30+12n
74
Note: L= size of 1 section N denotes contact system plus section number
External dimension(mm) Installation dimension(mm)
Model and specification
A B C L E1 E2 E3 D1 D2
SZW25-74D/ □·GS 74 74 42 30+12n 33 58 58 Φ8 Φ4.5

1-5（ Thickness of mounting panel）
48
> SZW25-48D/ □·K 36 8Φ-4.5
ON OFF ON
Φ8
48 42 48 36

48 L=37+12n
Note: L= size of 1 section N denotes contact system plus section number

External dimension(mm) Installation dimension(mm)
Model and specification
A B C L E1 E2 F1 F2 D1
SZW25-48D/ □·K 48 48 42 37+12n 36 48 36 48 Φ8

1-5（ Thickness of mounting panel）
> SZW25-48D/ □□
36 4Φ-4.5
48 42
Φ8 36

48 L=37+12n
Note: L= size of 1 section N denotes contact system plus section number
External dimension(mm) Installation dimension(mm)
Model and specification
A B C L E F D1 D2
SZW25-48D/ □·K 48 48 42 37+12n 36 36 Φ8 Φ4.5

1-5（ Thickness of mounting panel）
> SZW25-80D/ □·GS
OFF
Φ8 2-Φ4.5 Φ8 2-Φ4.5
42
80
33 50
L=30+12n
80
Note: L= size of 1 section N denotes contact system plus section number
External dimension(mm) Installation dimension(mm)
Model and specification
A B C L E E2 D1 D2
SZW25-80D/ □·GS 80 80 42 30+12n 33 50 Φ8 Φ4.5
