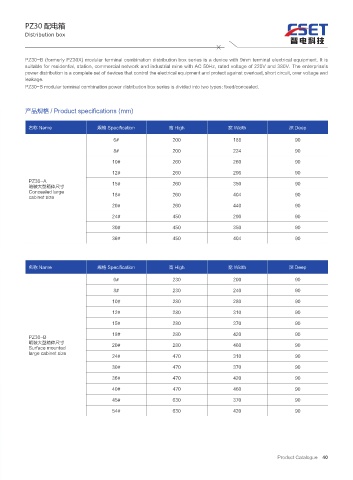

Page 47 - 重庆智电科技有限公司

PZ30 配电箱
Distribution box

PZ30-B (formerly PZ30X) modular terminal combination distribution box series is a device with 9mm terminal electrical equipment. It is
suitable for residential, station, commercial network and industrial mine with AC 50Hz, rated voltage of 220V and 380V. The enterprise's
power distribution is a complete set of devices that control the electrical equipment and protect against overload, short circuit, over voltage and
leakage.
PZ30-B modular terminal combination power distribution box series is divided into two types: fixed/concealed.

产品规格 / Product specifications (mm)

名称 Name 规格 Specification 高 High 宽 Width 深 Deep

6# 200 188 90
8# 200 224 90

10# 260 260 90
12# 260 296 90
PZ30-A
暗装大型箱体尺寸 15# 260 350 90
Concealed large
cabinet size 18# 260 404 90
20# 260 440 90
24# 450 296 90
30# 450 350 90

36# 450 404 90

名称 Name 规格 Specification 高 High 宽 Width 深 Deep
6# 230 200 90

8# 230 240 90
10# 280 280 90
12# 280 310 90

15# 280 370 90
18# 280 420 90
PZ30-B
明装大型箱体尺寸
Surface mounted 20# 280 460 90
large cabinet size
24# 470 310 90
30# 470 370 90
36# 470 420 90
40# 470 460 90

45# 630 370 90
54# 630 420 90
