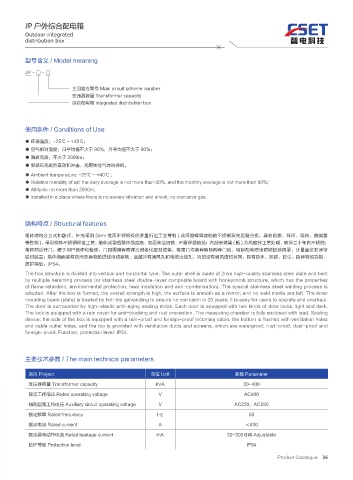

JP 户外综合配电箱
Outdoor integrated
distribution box

型号含义 / Model meaning

JP - □ - □

主回路方案号 Main circuit scheme number
变压器容量 Transformer capacity
综合配电箱 Integrated distribution box

使用条件 / Conditions of Use

● 环境温度：-25℃ ~ +40℃；
● 空气相对湿度：日平均值不大于 90%，月平均值不大于 90%；
● 海拔高度：不大于 2000m；
● 安装在无剧烈震动和冲击、无腐蚀性气体的场所。
● Ambient temperature: -25℃ ~ +40℃ ;
● Relative humidity of air: the daily average is not more than 90%, and the monthly average is not more than 90%;
● Altitude: no more than 2000m;
● Installed in a place where there is no severe vibration and shock, no corrosive gas.

结构特点 / Structural features

箱体结构分立式和卧式，外壳采用 2mm 优质不锈钢板经多重折边工艺弯制 ( 或采用蜂窝结构的不锈钢双夹层复合板，具有阻燃、环保、隔热、防凝露
等性能 )，采用特殊不锈钢焊接工艺，箱体成型后整体强度高，表面光洁如镜，不留焊缝痕迹；内部安装梁 ( 板 ) 为热镀锌工艺处理，确保二十年内不锈蚀；
箱体前后开门，便于用户操作和检修，门四周镶有高弹力耐老化密封胶条，每扇门均装有明暗两种门锁，明锁配有防堵防锈的遮雨罩；计量室全封闭带
铅封装置；箱体侧面装有防雨防异物的进线电缆穿管，底部冲有通风孔和电缆出线孔，顶部设有通风道和丝网，具有防水、防锈、防尘、防异物的功能，
防护等级：IP54。
The box structure is divided into vertical and horizontal type. The outer shell is made of 2mm high-quality stainless steel plate and bent
by multiple hemming process (or stainless steel double-layer composite board with honeycomb structure, which has the properties
of flame retardant, environmental protection, heat insulation and anti-condensation). The special stainless steel welding process is
adopted. After the box is formed, the overall strength is high, the surface is smooth as a mirror, and no weld marks are left. The inner
mounting beam (plate) is treated by hot-dip galvanizing to ensure no corrosion in 20 years; It is easy for users to operate and overhaul.
The door is surrounded by high-elastic anti-aging sealing strips. Each door is equipped with two kinds of door locks, light and dark.
The lock is equipped with a rain cover for anti-blocking and rust prevention. The measuring chamber is fully enclosed with lead. Sealing
device; the side of the box is equipped with a rain-proof and foreign-proof incoming cable, the bottom is flushed with ventilation holes
and cable outlet holes, and the top is provided with ventilation ducts and screens, which are waterproof, rust-proof, dust-proof and
foreign-proof. Function, protection level: IP54.

主要技术参数 / The main technical parameters

项目 Project 单位 Unit 参数 Parameter
变压器容量 Transformer capacity kVA 30-400
额定工作电压 Rated operating voltage V AC400
辅助回路工作电压 Auxiliary circuit operating voltage V AC220，AC380

额定频率 Rated frequency Hz 50
额定电流 Rated current A ≤630
额定漏电动作电流 Rated leakage current mA 30~300可调 Adjustable
防护等级 Protection level IP54
