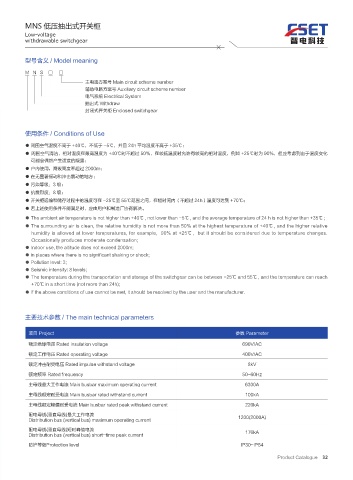

MNS 低压抽出式开关柜
Low-voltage
withdrawable switchgear

型号含义 / Model meaning

M N S □ □
主电路方案号 Main circuit scheme number
辅助电路方案号 Auxiliary circuit scheme number
电气系统 Electrical System
抽出式 Withdraw
封闭式开关柜 Enclosed switchgear

使用条件 / Conditions of Use

● 周围空气温度不高于 +40℃，不低于 -5℃，并且 24h 平均温度不高于 +35℃；
● 周围空气清洁，相对湿度在最高温度为 +40℃时不超过 50%，在较低温度时允许有较高的相对湿度，例如 +25℃时为 90%，但应考虑到由于温度变化
可能会偶然产生适度的凝露；
● 户内使用，海拔高度不超过 2000m；
● 在无显著摇动和冲击震动的地方；
● 污染等级：3 级；
● 抗震烈度：8 级；
● 开关柜运输和储存过程中的温度可在 -25℃至 55℃范围之间，在短时间内（不超过 24h）温度可达到 +70℃；
● 若上述使用条件不能满足时，应由用户和制造厂协商解决。
● The ambient air temperature is not higher than +40℃ , not lower than -5℃ , and the average temperature of 24 h is not higher than +35℃ ;
● The surrounding air is clean, the relative humidity is not more than 50% at the highest temperature of +40℃ , and the higher relative
humidity is allowed at lower temperatures, for example, 90% at +25℃ , but it should be considered due to temperature changes.
Occasionally produces moderate condensation;
● Indoor use, the altitude does not exceed 2000m;
● in places where there is no significant shaking or shock;
● Pollution level: 3;
● Seismic intensity: 8 levels;
● The temperature during the transportation and storage of the switchgear can be between -25℃ and 55℃ , and the temperature can reach
+70℃ in a short time (not more than 24h);
● If the above conditions of use cannot be met, it should be resolved by the user and the manufacturer.

主要技术参数 / The main technical parameters

项目 Project 参数 Parameter
额定绝缘电压 Rated insulation voltage 690V/AC
额定工作电压 Rated operating voltage 400V/AC
额定冲击耐受电压 Rated impulse withstand voltage 8kV
额定频率 Rated frequency 50~60Hz
主母线最大工作电流 Main busbar maximum operating current 6300A
主母线额定耐受电流 Main busbar rated withstand current 100kA

主母线额定峰值耐受电流 Main busbar rated peak withstand current 220kA
配电母线(垂直母线)最大工作电流
Distribution bus (vertical bus) maximum operating current 1200(2000A)
配电母线(垂直母线)短时峰值电流 176kA
Distribution bus (vertical bus) short-time peak current
防护等级Protection level IP30~IP54
