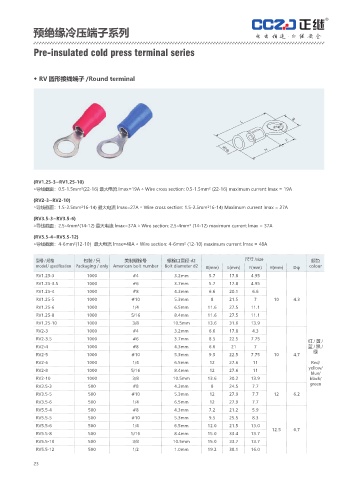

预绝缘冷压端子系列

Pre-insulated cold press terminal series

◆ RV 圆形接线端子 /Round terminal

#
-
E Ð
'
)
E Ð

(RV1.25-3~RV1.25-10)
△导线截面：0.5-1.5mm²(22-16) 最大电流 lmax=19A △ Wire cross section: 0.5-1.5mm² (22-16) maximum current lmax = 19A

(RV2-3~RV2-10)
△导线截面：1.5-2.5mm²16-14) 最大电流 lmax=27A △ Wire cross section: 1.5-2.5mm²16-14) Maximum current lmax = 27A
(RV3.5-3~RV3.5-6)
△导线截面：2.5-4mm²(14-12) 最大电流 lmax=37A △ Wire section: 2.5-4mm² (14-12) maximum current lmax = 37A
(RV5.5-4~RV5.5-12)
△导线截面：4-6mm²(12-10）最大电流 lmax=48A △ Wire section: 4-6mm² (12-10) maximum current lmax = 48A

型号 / 规格 包装 / 只 美制螺栓号 螺栓口直径 d2 尺寸 /size 颜色
model / specification Packaging / only American bolt number Bolt diameter d2 B(mm) L(mm) F(mm) H(mm) Dφ colour
RV1.25-3 1000 #4 3.2mm 5.7 17.8 4.95
RV1.25-3.5 1000 #6 3.7mm 5.7 17.8 4.95
RV1.25-4 1000 #8 4.3mm 6.6 20.1 6.6
RV1.25-5 1000 #10 5.3mm 8 21.5 7 10 4.3
RV1.25-6 1000 1/4 6.5mm 11.6 27.5 11.1
RV1.25-8 1000 5/16 8.4mm 11.6 27.5 11.1
RV1.25-10 1000 3/8 10.5mm 13.6 31.6 13.9
RV2-3 1000 #4 3.2mm 6.6 17.8 4.3
RV2-3.5 1000 #6 3.7mm 8.5 22.5 7.75 红 / 黄 /
RV2-4 1000 #8 4.3mm 6.6 21 7 蓝 / 黑 /
绿
RV2-5 1000 #10 5.3mm 9.5 22.5 7.75 10 4.7
RV2-6 1000 1/4 6.5mm 12 27.6 11 Red/
yellow/
RV2-8 1000 5/16 8.4mm 12 27.6 11
blue/
RV2-10 1000 3/8 10.5mm 13.6 30.2 13.9 black/
RV3.5-3 500 #8 4.3mm 8 24.5 7.7 green
RV3.5-5 500 #10 5.3mm 12 27.9 7.7 12 6.2
RV3.5-6 500 1/4 6.5mm 12 27.9 7.7
RV5.5-4 500 #8 4.3mm 7.2 21.2 5.9
RV5.5-5 500 #10 5.3mm 9.5 25.5 8.3
RV5.5-6 500 1/4 6.5mm 12.0 21.5 13.0
12.5 6.7
RV5.5-8 500 5/16 8.4mm 15.0 33.4 13.7
RV5.5-10 500 3/8 10.5mm 15.0 33.7 13.7
RV5.5-12 500 1/2 1.0mm 19.2 38.1 16.0

23
