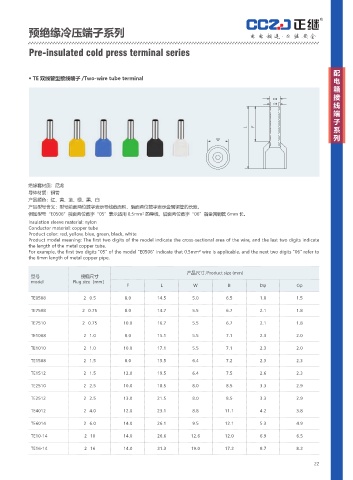

Page 29 - 温州正继连接器有限公司

预绝缘冷压端子系列

Pre-insulated cold press terminal series

配
◆ TE 双线管型接线端子 /Two-wire tube terminal 电
箱
接
%Ð
线
$Ð
端
子
系
- '
列
8

绝缘套材质：尼龙
导体材质：铜管
产品颜色：红、黄、蓝、绿、黑、白
产品型号含义：型号前面两位数字表示导线截面积，后面两位数字表示金属铜管的长度。
例如型号“E0506”前面两位数字“05”表示适用 0.5mm² 的导线，后面两位数字“06”指金属铜管 6mm 长。
Insulation sleeve material: nylon
Conductor material: copper tube
Product color: red, yellow, blue, green, black, white
Product model meaning: The first two digits of the model indicate the cross-sectional area of the wire, and the last two digits indicate
the length of the metal copper tube.
For example, the first two digits "05" of the model "E0506" indicate that 0.5mm² wire is applicable, and the next two digits "06" refer to
the 6mm length of metal copper pipe.

产品尺寸 /Product size (mm)
型号 接插尺寸
model Plug size（mm）
F L W B Dφ Cφ
˜
TE0508 2 0.5 8.0 14.5 5.0 6.5 1.8 1.5
˜
TE7508 2 0.75 8.0 14.7 5.5 6.7 2.1 1.8
˜
TE7510 2 0.75 10.0 16.7 5.5 6.7 2.1 1.8
TE1008 2 1.0 8.0 15.1 5.5 7.1 2.3 2.0
˜
˜
TE1010 2 1.0 10.0 17.1 5.5 7.1 2.3 2.0
TE1508 2 1.5 8.0 15.5 6.4 7.2 2.3 2.3
˜
˜
TE1512 2 1.5 12.0 19.5 6.4 7.5 2.6 2.3
˜
TE2510 2 2.5 10.0 18.5 8.0 8.5 3.3 2.9
˜
TE2512 2 2.5 13.0 21.5 8.0 8.5 3.3 2.9
˜
TE4012 2 4.0 12.0 23.1 8.8 11.1 4.2 3.8
˜
TE6014 2 6.0 14.0 26.1 9.5 12.1 5.3 4.9
˜
TE10-14 2 10 14.0 26.6 12.6 12.0 6.9 6.5
˜
TE16-14 2 16 14.0 31.3 19.0 17.3 8.7 8.3
22
