YINGMING POWER

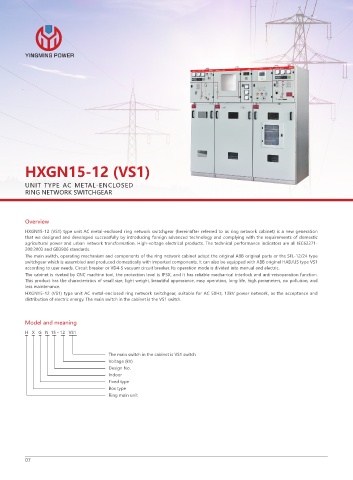

HXGN15-12 (VS1)

UNIT TYPE AC METAL-ENCLOSED
RING NETWORK SWITCHGEAR

Overview
HXGN15-12 (VS1) type unit AC metal-enclosed ring network switchgear (hereinafter referred to as ring network cabinet) is a new generation
that we designed and developed successfully by introducing foreign advanced technology and complying with the requirements of domestic
agricultural power and urban network transformation. High-voltage electrical products. The technical performance indicators are all IEC62271-
200:2003 and GB3906 standards.
The main switch, operating mechanism and components of the ring network cabinet adopt the original ABB original parts or the SFL-12/24 type
switchgear which is assembled and produced domestically with imported components. It can also be equipped with ABB original HAD/US type VS1
according to user needs. Circuit breaker or VD4-S vacuum circuit breaker. Its operation mode is divided into manual and electric.
The cabinet is riveted by CNC machine tool, the protection level is IP3X, and it has reliable mechanical interlock and anti-misoperation function.
This product has the characteristics of small size, light weight, beautiful appearance, easy operation, long life, high parameters, no pollution, and
less maintenance.
HXGN15-12 (VS1) type unit AC metal-enclosed ring network switchgear, suitable for AC 50Hz, 12kV power network, as the acceptance and
distribution of electric energy. The main switch in the cabinet is the VS1 switch.

Model and meaning
H X G N 15 - 12 VS1

The main switch in the cabinet is VS1 switch
Voltage (kV)
Design No.
Indoor
Fixed type
Box type
Ring main unit
