YINGMING POWER

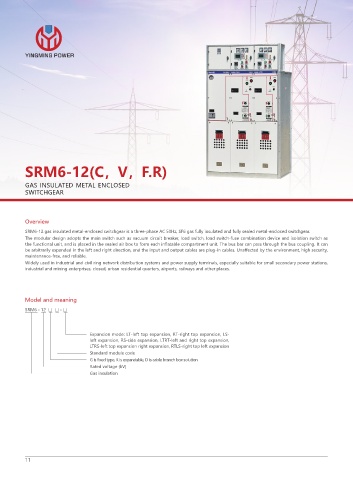

SRM6-12(C，V，F.R)

GAS INSULATED METAL ENCLOSED
SWITCHGEAR

Overview
SRM6-12 gas insulated metal-enclosed switchgear is a three-phase AC 50Hz, SF6 gas fully insulated and fully sealed metal-enclosed switchgear.
The modular design adopts the main switch such as vacuum circuit breaker, load switch, load switch-fuse combination device and isolation switch as
the functional unit, and is placed in the sealed air box to form each inflatable compartment unit. The bus bar can pass through the bus coupling. It can
be arbitrarily expanded in the left and right direction, and the input and output cables are plug-in cables. Unaffected by the environment, high security,
maintenance-free, and reliable.
Widely used in industrial and civil ring network distribution systems and power supply terminals, especially suitable for small secondary power stations,
industrial and mining enterprises, closed, urban residential quarters, airports, railways and other places.

Model and meaning

SRM6 - 12 □ □ - □

Expansion mode: LT-left top expansion, RT-right top expansion, LS-
left expansion, RS-side expansion, LTRT-left and right top expansion,
LTRS-left top expansion right expansion, RTLS-right top left expansion
Standard module code
G is fixed type, K is expandable, D is cable branch box solution
Rated voltage (kV)
Gas insulation

11
