YINGMING POWER

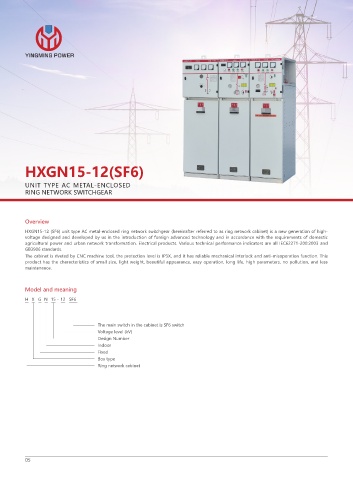

HXGN15-12(SF6)
UNIT TYPE AC METAL-ENCLOSED
RING NETWORK SWITCHGEAR
Overview
HXGN15-12 (SF6) unit type AC metal-enclosed ring network switchgear (hereinafter referred to as ring network cabinet) is a new generation of high-
voltage designed and developed by us in the introduction of foreign advanced technology and in accordance with the requirements of domestic
agricultural power and urban network transformation. Electrical products. Various technical performance indicators are all IEC62271-200:2003 and
GB3906 standards.
The cabinet is riveted by CNC machine tool, the protection level is IP3X, and it has reliable mechanical interlock and anti-misoperation function. This
product has the characteristics of small size, light weight, beautiful appearance, easy operation, long life, high parameters, no pollution, and less
maintenance.
Model and meaning
H X G N 15 - 12 SF6
The main switch in the cabinet is SF6 switch
Voltage level (kV)
Design Number
Indoor
Fixed
Box type
Ring network cabinet
05
