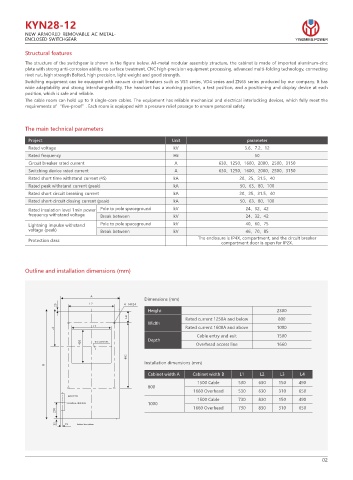

KYN28-12
NEW ARMORED REMOVABLE AC METAL-
ENCLOSED SWITCHGEAR YINGMING POWER
Structural features

The structure of the switchgear is shown in the figure below. All-metal modular assembly structure, the cabinet is made of imported aluminum-zinc
plate with strong anti-corrosion ability, no surface treatment, CNC high-precision equipment processing, advanced multi-folding technology, connecting
rivet nut, high strength Bolted, high precision, light weight and good strength.
Switching equipment can be equipped with vacuum circuit breakers such as VS1 series, VD4 series and ZN65 series produced by our company. It has
wide adaptability and strong interchangeability. The handcart has a working position, a test position, and a positioning and display device at each
position, which is safe and reliable.
The cable room can hold up to 9 single-core cables. The equipment has reliable mechanical and electrical interlocking devices, which fully meet the
requirements of “five-proof”. Each room is equipped with a pressure relief passage to ensure personal safety.

The main technical parameters

Project Unit parameter
Rated voltage kV 3.6、7.2、12
Rated frequency Hz 50
Circuit breaker rated current A 630、1250、1600、2000、2500、3150
Switching device rated current A 630、1250、1600、2000、2500、3150
Rated short time withstand current (4S) kA 20、25、31.5、40
Rated peak withstand current (peak) kA 50、63、80、100
Rated short circuit breaking current kA 20、25、31.5、40
Rated short-circuit closing current (peak) kA 50、63、80、100
Rated insulation level 1min power Pole to pole spaceground kV 24、32、42
frequency withstand voltage Break between kV 24、32、42
Lightning impulse withstand Pole to pole spaceground kV 40、60、75
voltage (peak) Break between kV 46、70、85
The enclosure is IP4X, compartment, and the circuit breaker
Protection class
compartment door is open for IP2X.

Outline and installation dimensions (mm)

"
Dimensions (mm)
- 9
Height 2300
- Rated current 1250A and below 800
Width
- Rated current 1600A and above 1000
-
Cable entry and exit 1500
Depth
0OF DBCMF IPMF Overhead access line 1660

Installation dimensions (mm)
#
Cabinet width A Cabinet width B L1 L2 L3 L4
1500 Cable 530 630 150 490
800
1660 Overhead 530 630 310 650
9
1500 Cable 730 830 150 490
1000
4FDPOEBSZ DBCMF IPMF
1660 Overhead 730 830 310 650

#FIJOE UIF DBCJOFU
