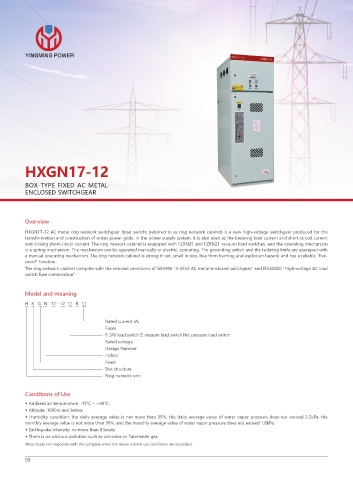

YINGMING POWER

HXGN17-12

BOX-TYPE FIXED AC METAL-
ENCLOSED SWITCHGEAR

Overview
HXGN17-12 AC metal ring network switchgear (load switch) (referred to as ring network cabinet) is a new high-voltage switchgear produced for the
transformation and construction of urban power grids. In the power supply system, it is also used as the breaking load current and short-circuit current
and closing short-circuit current. The ring network cabinet is equipped with FZRN25 and FZRN21 vacuum load switches, and the operating mechanism
is a spring mechanism. The mechanism can be operated manually or electric. operating. The grounding switch and the isolating knife are equipped with
a manual operating mechanism. The ring network cabinet is strong in set, small in size, free from burning and explosion hazard, and has a reliable "five-
proof" function.
The ring network cabinet complies with the relevant provisions of GB3906 "3-35kV AC metal-enclosed switchgear" and IEC60420 "High-voltage AC load
switch fuse combination".

Model and meaning
H X G N 17 - 12 □ R □

Rated current (A)
Fuses
F: SF6 load switch Z: vacuum load switch No: pressure load switch
Rated voltage
Design Number
Indoor
Fixed
Box structure
Ring network unit

Conditions of Use
◆ Ambient air temperature: -15℃ ~ +40℃ ;
◆ Altitude: 1000m and below;
◆ Humidity condition: the daily average value is not more than 95%, the daily average value of water vapor pressure does not exceed 2.2kPa; the
monthly average value is not more than 90%, and the monthly average value of water vapor pressure does not exceed 1.8kPa;
◆ Earthquake intensity: no more than 8 levels;
◆ There is no obvious pollution such as corrosive or flammable gas.
Note: Users can negotiate with the company when the above normal use conditions are exceeded.

09
