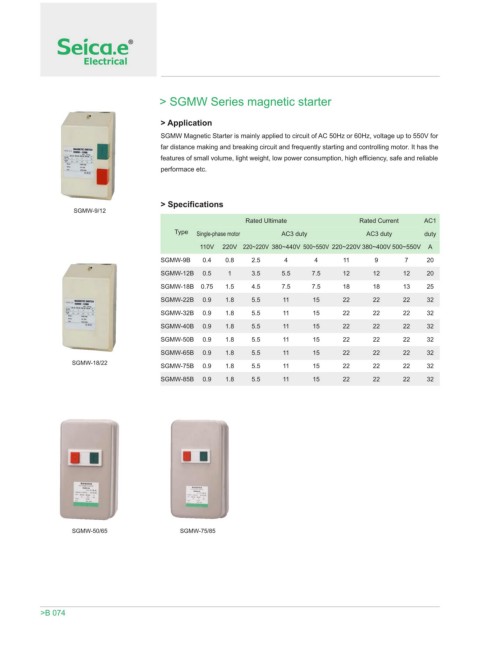

> SGMW Series magnetic starter
> Application
SGMW Magnetic Starter is mainly applied to circuit of AC 50Hz or 60Hz, voltage up to 550V for
far distance making and breaking circuit and frequently starting and controlling motor. It has the
features of small volume, light weight, low power consumption, high efficiency, safe and reliable
performace etc.
> Specifications
SGMW-9/12
Rated Ultimate Rated Current AC1
Type Single-phase motor AC3 duty AC3 duty duty
110V 220V 220~220V 380~440V 500~550V 220~220V 380~400V 500~550V A
SGMW-9B 0.4 0.8 2.5 4 4 11 9 7 20
SGMW-12B 0.5 1 3.5 5.5 7.5 12 12 12 20
SGMW-18B 0.75 1.5 4.5 7.5 7.5 18 18 13 25
SGMW-22B 0.9 1.8 5.5 11 15 22 22 22 32
SGMW-32B 0.9 1.8 5.5 11 15 22 22 22 32
SGMW-40B 0.9 1.8 5.5 11 15 22 22 22 32
SGMW-50B 0.9 1.8 5.5 11 15 22 22 22 32
SGMW-65B 0.9 1.8 5.5 11 15 22 22 22 32
SGMW-18/22 SGMW-75B 0.9 1.8 5.5 11 15 22 22 22 32
SGMW-85B 0.9 1.8 5.5 11 15 22 22 22 32
SGMW-50/65 SGMW-75/85
