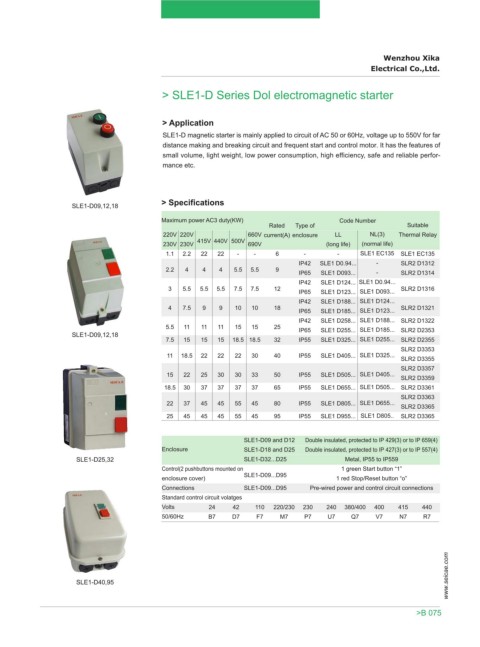

> SLE1-D Series Dol electromagnetic starter
> Application
SLE1-D magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far
distance making and breaking circuit and frequent start and control motor. It has the features of
small volume, light weight, low power consumption, high efficiency, safe and reliable perfor-
mance etc.
> Specifications
SLE1-D09,12,18
Maximum power AC3 duty(KW) Code Number
Rated Type of Suitable
220V 220V 660V current(A) enclosure LL NL(3) Thermal Relay
230V 230V 415V 440V 500V 690V (long life) (normal life)
1.1 2.2 22 22 - - 6 - - SLE1 EC135 SLE1 EC135
IP42 SLE1 D0.94... - SLR2 D1312
2.2 4 4 4 5.5 5.5 9
IP65 SLE1 D093... - SLR2 D1314
IP42 SLE1 D124... SLE1 D0.94...
3 5.5 5.5 5.5 7.5 7.5 12 IP65 SLE1 D123... SLE1 D093... SLR2 D1316
IP42 SLE1 D188... SLE1 D124...
4 7.5 9 9 10 10 18 IP65 SLE1 D185... SLE1 D123... SLR2 D1321
IP42 SLE1 D258... SLE1 D188... SLR2 D1322
5.5 11 11 11 15 15 25 IP65 SLE1 D255... SLE1 D185... SLR2 D2353
SLE1-D09,12,18
7.5 15 15 15 18.5 18.5 32 IP55 SLE1 D325... SLE1 D255... SLR2 D2355
SLR2 D3353
11 18.5 22 22 22 30 40 IP55 SLE1 D405... SLE1 D325... SLR2 D3355
SLR2 D3357
15 22 25 30 30 33 50 IP55 SLE1 D505... SLE1 D405...
SLR2 D3359
18.5 30 37 37 37 37 65 IP55 SLE1 D655... SLE1 D505... SLR2 D3361
SLR2 D3363
22 37 45 45 55 45 80 IP55 SLE1 D805... SLE1 D655... SLR2 D3365
25 45 45 45 55 45 95 IP55 SLE1 D955... SLE1 D805.. SLR2 D3365
SLE1-D09 and D12 Double insulated, protected to IP 429(3) or to IP 659(4)
Enclosure SLE1-D18 and D25 Double insulated, protected to IP 427(3) or to IP 557(4)
SLE1-D25,32 SLE1-D32...D25 Metal, IP55 to IP559
Control(2 pushbuttons mounted on 1 green Start button “1”
SLE1-D09...D95
enclosure cover) 1 red Stop/Reset button “o”
Connections SLE1-D09...D95 Pre-wired power and control circuit connections
Standard control circuit volatges
Volts 24 42 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 F7 M7 P7 U7 Q7 V7 N7 R7
www.seicae.com
SLE1-D40,95
