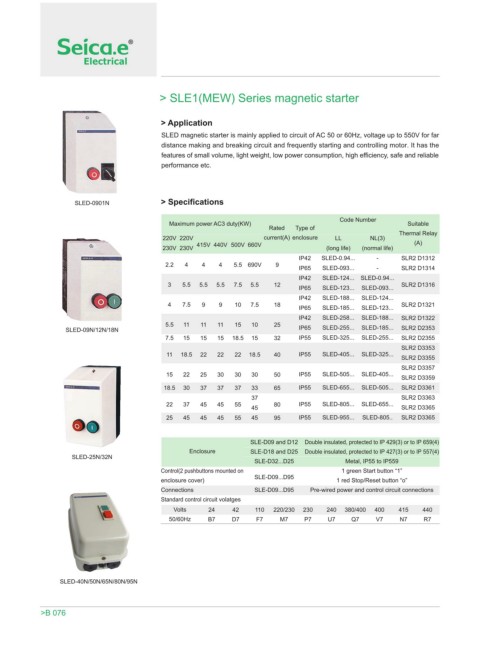

> SLE1(MEW) Series magnetic starter

> Application
SLED magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far
distance making and breaking circuit and frequently starting and controlling motor. It has the
features of small volume, light weight, low power consumption, high efficiency, safe and reliable
performance etc.

SLED-0901N > Specifications
Code Number
Maximum power AC3 duty(KW) Suitable
Rated Type of
220V 220V current(A) enclosure LL NL(3) Thermal Relay
415V 440V 500V 660V (A)
230V 230V (long life) (normal life)
IP42 SLED-0.94... - SLR2 D1312
2.2 4 4 4 5.5 690V 9
IP65 SLED-093... - SLR2 D1314
IP42 SLED-124... SLED-0.94...
3 5.5 5.5 5.5 7.5 5.5 12 SLR2 D1316
IP65 SLED-123... SLED-093...
IP42 SLED-188... SLED-124...
4 7.5 9 9 10 7.5 18 IP65 SLED-185... SLED-123... SLR2 D1321
IP42 SLED-258... SLED-188... SLR2 D1322
5.5 11 11 11 15 10 25
SLED-09N/12N/18N IP65 SLED-255... SLED-185... SLR2 D2353
7.5 15 15 15 18.5 15 32 IP55 SLED-325... SLED-255... SLR2 D2355
SLR2 D3353
11 18.5 22 22 22 18.5 40 IP55 SLED-405... SLED-325... SLR2 D3355
SLR2 D3357
15 22 25 30 30 30 50 IP55 SLED-505... SLED-405... SLR2 D3359
18.5 30 37 37 37 33 65 IP55 SLED-655... SLED-505... SLR2 D3361
37 SLR2 D3363
22 37 45 45 55 80 IP55 SLED-805... SLED-655...
45 SLR2 D3365
25 45 45 45 55 45 95 IP55 SLED-955... SLED-805.. SLR2 D3365

SLE-D09 and D12 Double insulated, protected to IP 429(3) or to IP 659(4)
Enclosure SLE-D18 and D25 Double insulated, protected to IP 427(3) or to IP 557(4)
SLED-25N/32N
SLE-D32...D25 Metal, IP55 to IP559
Control(2 pushbuttons mounted on 1 green Start button “1”
enclosure cover) SLE-D09...D95 1 red Stop/Reset button “o”
Connections SLE-D09...D95 Pre-wired power and control circuit connections
Standard control circuit volatges
Volts 24 42 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 F7 M7 P7 U7 Q7 V7 N7 R7

SLED-40N/50N/65N/80N/95N
