P. 77
Wenzhou Xika
Electrical Co.,Ltd.

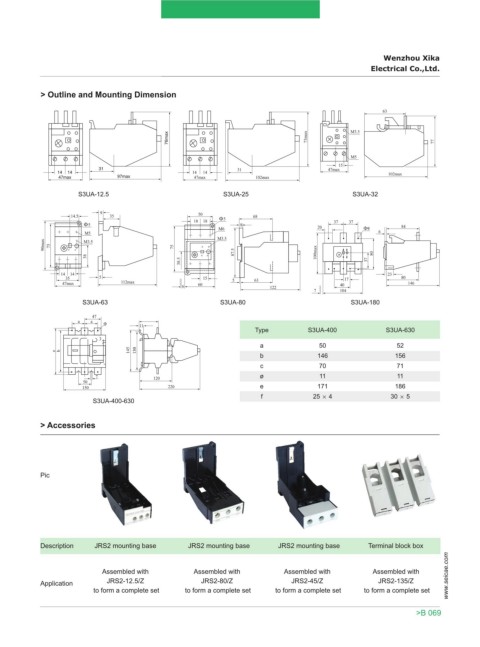

> Outline and Mounting Dimension
S3UA-12.5 S3UA-25 S3UA-32
S3UA-63 S3UA-80 S3UA-180
Type S3UA-400 S3UA-630
a 50 52
b 146 156
c 70 71
ø 11 11
e 171 186
f 25 4 30 5
S3UA-400-630
> Accessories
Pic
Description JRS2 mounting base JRS2 mounting base JRS2 mounting base Terminal block box
Assembled with Assembled with Assembled with Assembled with
Application JRS2-12.5/Z JRS2-80/Z JRS2-45/Z JRS2-135/Z www.seicae.com
to form a complete set to form a complete set to form a complete set to form a complete set
>B 069
