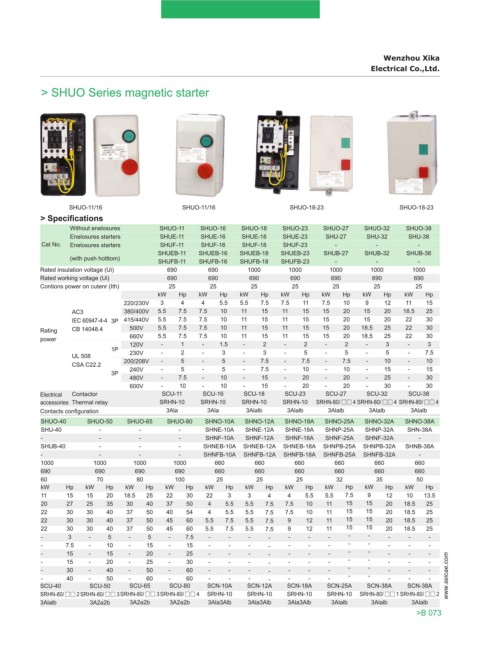

Page 81 - 温州西卡电器有限公司（WENZHOU XIKA ELECTRICAL CO.,LTD.）

Wenzhou Xika
Electrical Co.,Ltd.

> SHUO Series magnetic starter

SHUO-11/16 SHUO-11/16 SHUO-18-23 SHUO-18-23
> Specifications
Without enelosures SHUO-11 SHUO-16 SHUO-18 SHUO-23 SHUO-27 SHUO-32 SHUO-38
Enelosures starters SHUE-11 SHUE-16 SHUE-18 SHUE-23 SHU-27 SHU-32 SHU-38
Cat No. Enelosures starters SHUF-11 SHUF-16 SHUF-18 SHUF-23 - - -
SHUEB-11 SHUEB-16 SHUEB-18 SHUEB-23 SHUB-27 SHUB-32 SHUB-38
(with push hotttom) SHUFB-11 SHUFB-16 SHUFB-18 SHUFB-23 - - -
Rated insulation voltage (Ui) 690 690 1000 1000 1000 1000 1000
Rated working voltage (Ui) 690 690 690 690 690 690 690
Contions power on cutenr (Ith) 25 25 25 25 25 25 25
kW Hp kW Hp kW Hp kW Hp kW Hp kW Hp kW Hp
220/230V 3 4 4 5.5 5.5 7.5 7.5 11 7.5 10 9 12 11 15
AC3 380/400V 5.5 7.5 7.5 10 11 15 11 15 15 20 15 20 18.5 25
IEC 60947-4-4 3P 415/440V 5.5 7.5 7.5 10 11 15 11 15 15 20 15 20 22 30
Rating CB 14048.4 500V 5.5 7.5 7.5 10 11 15 11 15 15 20 18.5 25 22 30
power 660V 5.5 7.5 7.5 10 11 15 11 15 15 20 18.5 25 22 30
3
1P 120V - - 1 2 - - 1.5 - - 2 3 - - 2 5 - - 2 5 - - 3 5 - - 7.5
3
UL 508 230V
CSA C22.2 200/208V - 5 - 5 - 7.5 - 7.5 - 7.5 - 10 - 10
3P 240V - 5 - 5 - 7.5 - 10 - 10 - 15 - 15
480V - 7.5 - 10 - 15 - 20 - 20 - 25 - 30
600V - 10 - 10 - 15 - 20 - 20 - 30 - 30
Electrical Contactor SCU-11 SCU-16 SCU-18 SCU-23 SCU-27 SCU-32 SCU-38
accessories Thermal relay SRHN-10 SRHN-10 SRHN-10 SRHN-10 SRHN-80/ 4 SRHN-80/ 4 SRHN-80/ 4
Contacts configuration 3Ala 3Ala 3Alalb 3Alalb 3Alalb 3Alalb 3Alalb
SHUO-40 SHUO-50 SHUO-65 SHUO-80 SHNO-10A SHNO-12A SHNO-18A SHNO-25A SHNO-32A SHNO-38A
SHU-40 - - - SHNE-10A SHNE-12A SHNE-18A SHNP-25A SHNP-32A SHN-38A
- - - - SHNF-10A SHNF-12A SHNF-18A SHNF-25A SHNF-32A -
SHUB-40 - - - SHNEB-10A SHNEB-12A SHNEB-18A SHNPB-25A SHNPB-32A SHNB-38A
- - - - SHNFB-10A SHNFB-12A SHNFB-18A SHNFB-25A SHNFB-32A -
1000 1000 1000 1000 660 660 660 660 660 660
690 690 690 690 660 660 660 660 660 660
60 70 80 100 25 25 25 32 35 50
kW Hp kW Hp kW Hp kW Hp kW Hp kW Hp kW Hp kW Hp kW Hp kW Hp
11 15 15 20 18.5 25 22 30 22 3 3 4 4 5.5 5.5 7.5 9 12 10 13.5
20 27 25 35 30 40 37 50 4 5.5 5.5 7.5 7.5 10 11 15 15 20 18.5 25
22 30 30 40 37 50 40 54 4 5.5 5.5 7.5 7.5 10 11 15 15 20 18.5 25
22 30 30 40 37 50 45 60 5.5 7.5 5.5 7.5 9 12 11 15 15 20 18.5 25
22 30 30 40 37 50 45 60 5.5 7.5 5.5 7.5 9 12 11 15 15 20 18.5 25
- 3 - 5 - 5 - 7.5 - - - - - - - - - - - -
- 7.5 - 10 - 15 - 15 - - - - - - - - - - - -
- 15 - 15 - 20 - 25 - - - - - - - - - - - -
- 15 - 20 - 25 - 30 - - - - - - - - - - - -
- 30 - 40 - 50 - 60 - - - - - - - - - - - -
- 40 - 50 - 60 - 60 - - - - - - - - - - - - www.seicae.com
SCU-40 SCU-50 SCU-65 SCU-80 SCN-10A SCN-12A SCN-18A SCN-25A SCN-38A SCN-38A
SRHN-80/ 2SRHN-80/ 3SRHN-80/ 3SRHN-80/ 4 SRHN-10 SRHN-10 SRHN-10 SRHN-10 SRHN-80/ 1 SRHN-80/ 2
3Alalb 3A2a2b 3A2a2b 3A2a2b 3Ala3Alb 3Ala3Alb 3Ala3Alb 3Alalb 3Alalb 3Alalb
>B 073
