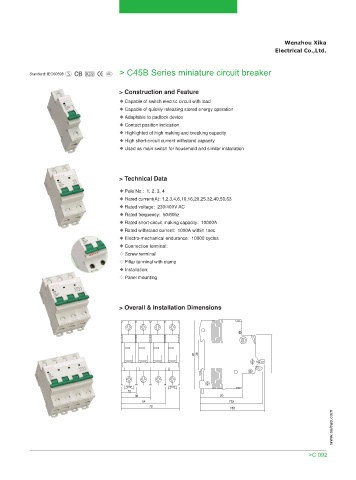

> C45B Series miniature circuit breaker
Standard: IEC60898
> Construction and Feature
Capable of switch electric circuit with load
Capable of quickly releasing stored energy operation
Adaptable to padlock device
Contact position indication
Highlighted of high making and breaking capacity
High short-circuit current withstand capacity
Used as main switch for household and similar installation
> Technical Data
Pole No.: 1, 2, 3, 4
Rated current(A): 1,2,3,4,6,10,16,20,25,32,40,50,63
Rated voltage: 230/400V AC
Rated frequency: 50/60hz
Rated short-circuit making capacity: 10000A
Rated withstand current: 1000A within 1sec
Electro-mechanical endurance: 10000 cycles
Connection terminal:
Screw terminal
Pillar terminal with clamp
Installation:
Panel mounting
> Overall & Installation Dimensions
