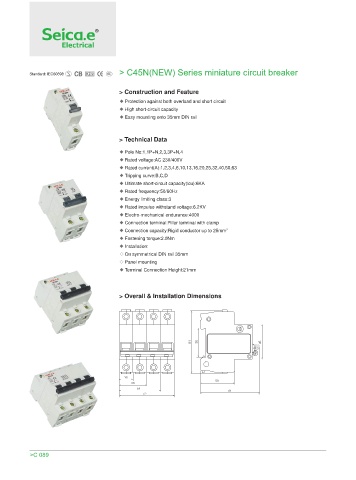

> C45N(NEW) Series miniature circuit breaker
Standard: IEC60898

> Construction and Feature
Protection against both overload and short circuit
High short-circuit capacity
Easy mounting onto 35mm DIN rail

> Technical Data

Pole No:1,1P+N,2,3,3P+N,4
Rated voltage:AC 230/400V
Rated current(A):1,2,3,4,6,10,13,16,20,25,32,40,50,63
Tripping curve:B,C,D
Ultimate short-circuit capacity(lcu):6KA
Rated frequency:50/60Hz
Energy limiting class:3
Rated impulse withstand voltage:6.2KV
Electro-mechanical endurance:4000
Connection terminal:Pillar terminal with clamp
Connection capacity:Rigid conductor up to 25mm 2
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Terminal Connection Height:21mm

> Overall & Installation Dimensions

>C 089
