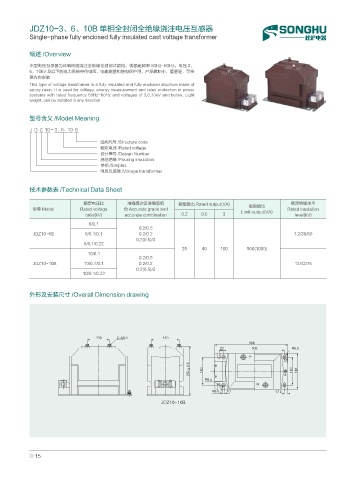

JDZ10-3、6、10B 单相全封闭全绝缘浇注电压互感器
Single-phase fully enclosed fully insulated cast voltage transformer

概述 /Overview

本型电压互感器为环氧树脂浇注全绝缘全封闭式结构，供额定频率 50Hz-60Hz，电压 3，
6，10kV 及以下的电力系统中作电压、电能测量和继电保护用，产品体积小，重量轻，可任
意方向安装
This type of voltage transformer is a fully insulated and fully enclosed structure made of
epoxy resin. It is used for voltage, energy measurement and relay protection in power
systems with rated frequency 50Hz-60Hz and voltages of 3,6,10kV and below. Light
weight, can be installed in any direction

型号含义 /Model Meaning
J D Z 10 - 3、6、10 B

结构代号 /Structure code
额定电压 /Rated voltage
设计序号 /Design Number
浇注绝缘 /Pouring insulation
单相 /Simplex
电压互感器 /Voltage transformer

技术参数表 /Technical Data Sheet

额定电压比 准确级次及准确级组 额定输出 Rated output(VA) 额定绝缘水平
极限输出
型号 Model Rated voltage 合 Accurate grade and Limit output(VA) Rated insulation
ratio(kV) accurate combination 0.2 0.5 3 level(kV)
6/0.1
0.2/0.5
JDZ10-6B 6/0.1/0.1 0.2/0.2 7.2/30/60
0.2(0.5)/3
6/0.1/0.22
25 40 100 500(1000)
10/0.1
0.2/0.5
JDZ10-10B 10/0.1/0.1 0.2/0.2 12/42/75
0.2(0.5)/3
10/0.1/0.22

外形及安装尺寸 /Overall Dimension drawing

.

3

"

d
3 #

3
+%; #
