P. 18

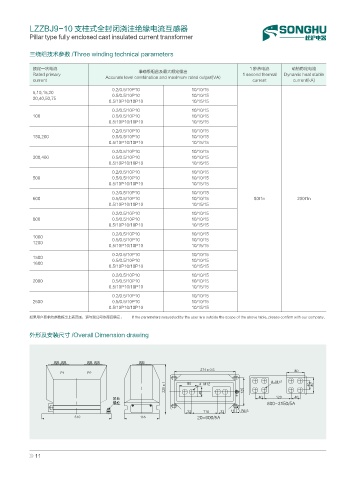

LZZBJ9-10 支柱式全封闭浇注绝缘电流互感器
           Pillar type fully enclosed cast insulated current transformer


           三绕组技术参数 /Three winding technical parameters

            额定一次电流                               准确级组合及最大额定输出                          1 秒热电流        动热稳定电流
            Rated primary            Accurate level combination and maximum rated output(VA)  1 second thermal   Dynamic heat stable
            current                                                                     current       current(kA)
                                        0.2/0.5/10P10              10/10/15
            5,10,15,20                  0.5/0.5/10P10              10/10/15
            30,40,50,75
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            100                         0.5/0.5/10P10              10/10/15
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            150,200                     0.5/0.5/10P10              10/10/15
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            300,400                     0.5/0.5/10P10              10/10/15
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            500                         0.5/0.5/10P10              10/10/15
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            600                         0.5/0.5/10P10              10/10/15             80I1n          200I1n
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            800                         0.5/0.5/10P10              10/10/15
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            1000                        0.5/0.5/10P10              10/10/15
            1200
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            1500                        0.5/0.5/10P10              10/10/15
            1600
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            2000                        0.5/0.5/10P10              10/10/15
                                      0.5/10P10/10P10              10/15/15
                                        0.2/0.5/10P10              10/10/15
            2500                        0.5/0.5/10P10              10/10/15
                                      0.5/10P10/10P10              10/15/15
           如果用户要求的参数超出上表范围,请与我公司协商后确定。        If the parameters requested by the user are outside the scope of the above table, please confirm with our company.

           外形及安装尺寸 /Overall Dimension drawing






                                                                         d
                      1        1
                                                                                                .

                                                                        .
                                                             d


                                        ᣑ౜
                                        㳦ᴿ                                                             "
                                                                                     3
                                                                             "




             11
   13   14   15   16   17   18   19   20   21   22   23
