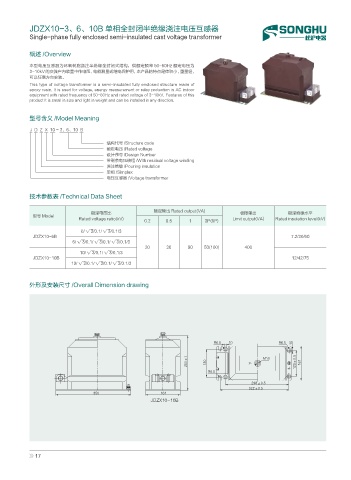

JDZX10-3、6、10B 单相全封闭半绝缘浇注电压互感器
Single-phase fully enclosed semi-insulated cast voltage transformer

概述 /Overview

本型电压互感器为环氧树脂浇注半绝缘全封闭式结构，供额定频率 50-60Hz 额定电压为
3-10kV 的交流户内装置中作电压、电能测量或继电保护用，本产品的特点是体积小，重量轻，
可以任意方向安装。
This type of voltage transformer is a semi-insulated fully enclosed structure made of
epoxy resin. It is used for voltage, energy measurement or relay protection in AC indoor
equipment with rated frequency of 50-60Hz and rated voltage of 3-10kV. Features of this
product It is small in size and light in weight and can be installed in any direction.

型号含义 /Model Meaning
J D Z X 10 - 3、6、10 B

结构代号 /Structure code
额定电压 /Rated voltage
设计序号 /Design Number
带剩余电压绕组 /With residual voltage winding
浇注绝缘 /Pouring insulation
单相 /Simplex
电压互感器 /Voltage transformer

技术参数表 /Technical Data Sheet

额定电压比 额定输出 Rated output(VA) 极限输出 额定绝缘水平
型号 Model
Rated voltage ratio(kV) Limit output(VA) Rated insulation level(kV)
0.2 0.5 1 3P(6P)
6/ √ 3/0.1/ √ 3/0.1/3
JDZX10-6B 7.2/30/60
6/ √ 3/0.1/ √ 3/0.1/ √ 3/0.1/3
20 30 90 50(100) 400
10/ √ 3/0.1/ √ 3/0.1/3
JDZX10-10B 12/42/75
10/ √ 3/0.1/ √ 3/0.1/ √ 3/0.1/3

外形及安装尺寸 /Overall Dimension drawing

3 3

d " . d

3

d
d

+%;9 #

17
