P. 15

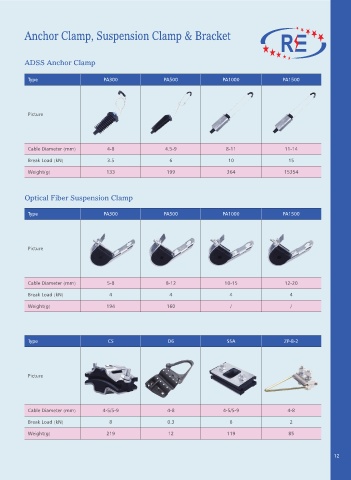

Anchor Clamp, Suspension Clamp & Bracket
ADSS Anchor Clamp
Type PA300 PA500 PA1000 PA1500
Cable Diameter (mm) 4-8 4.5-9 8-11 11-14
Break Load (kN) 3.5 6 10 15
Weight(g) 133 199 364 15354
Optical Fiber Suspension Clamp
Type PA300 PA500 PA1000 PA1500
Cable Diameter (mm) 5-8 8-12 10-15 12-20
Break Load (kN) 4 4 4 4
Weight(g) 194 160 / /
Type CS D6 SSA ZP-8-2
Cable Diameter (mm) 4-5/5-9 4-8 4-5/5-9 4-8
Break Load (kN) 8 0.3 8 2
Weight(g) 219 12 119 85
12
