CCX-L密集型铜铝复合母线槽 CCX(KBC-1)照明母线槽
CCX-L密集型铜铝复合母线槽 CCX(KBC-1)照明母线槽
CCX-L Copper-Al Complex Busbar Channel CCX(KBC-1) Lighting Busbar Trunking 系统概述 System introduction
L垂直+L水平W组合弯头：
L vertical +L W combined elbow:
可方便改变一段母线槽垂直面转变为水平面的走向；
接头组件转移到另一端，可形成水平面转变为垂直面的走向配
置；
水平弯为固定的PE在外配置；
每个弯头配置一套接头组件；
铜铝复合导体：200A-2000A为单槽配置；2500A-3150A为
双槽配置；
单槽母线，L1、L2、L3标准中心长度为0.5米；
双槽母线，L1、L2、L3标准中心长度为0.6米；
所有参数长度可根据现场的实际情况设定。
Can be convenient to change a busbar vertical shift towards the horizontal plane;
Joint assembly is moved to the other end, can form a plane into the vertical surface to the configuration;
Horizontal bend for fixed PE in the outer configuration;
Each bend a joint assembly;
Copper and aluminum composite conductors: 200A-2000A as the single slot configuration; 2500A-3150A is a
double tank configuration;
Single busbar, L1, L2, L3 center is 0.5 meters in length;
Double bus, L1, L2, L3 center is 0.6 meters in length;
All parameter length can be set according to the actual situation.
L垂直+L水平N组合弯头：
L vertical +L N combined elbow:
可方便改变一段母线槽垂直面转变为水平面的走向；
接头组件转移到另一端，可形成水平面转变为垂直面的走向配
置；
水平弯为固定的PE在外配置；
每个弯头配置一套接头组件；
铜铝复合导体：200A-2000A为单槽配置；2500A-3150A为双
槽配置；
单槽母线，L1、L2、L3标准中心长度为0.5米；
双槽母线，L1、L2、L3标准中心长度为0.6米；

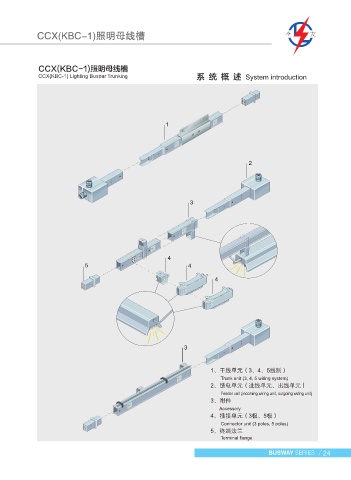

所有参数长度可根据现场的实际情况设定。 1、干线单元（3、4、5线制）
Can be convenient to change a busbar vertical shift towards the horizontal plane; Trunk unit (3, 4, 5 wiring system)
Joint assembly is moved to the other end, can form a plane into the vertical surface to the configuration; 2、馈电单元（进线单元、出线单元）
Horizontal bend for fixed PE in the outer configuration; Feeder unit (incoming wiring unit, outgoing wiring unit)
Each bend a joint assembly; 3、附件
Copper and aluminum composite conductors: 200A-2000A as the single slot configuration; 2500A-3150A is a Accessory
double tank configuration; 4、插接单元（3极、5极）
Single busbar, L1, L2, L3 center is 0.5 meters in length; Connector unit (3 poles, 5 poles)
Double bus, L1, L2, L3 center is 0.6 meters in length; 5、终端法兰
All parameter length can be set according to the actual situation. Terminal flange
23 BUSWAY SERIES BUSWAY SERIES 24
