CD-CMC密集型母线槽系列 CCX-NHMC耐火母线槽系列

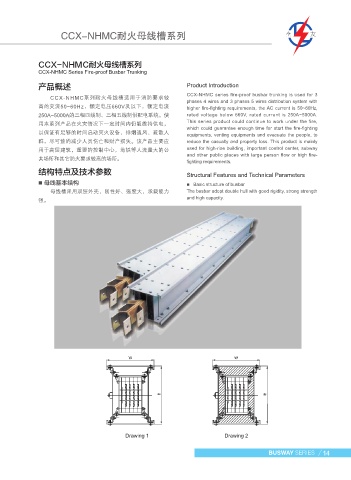

功能单元 Functional Unit CCX-NHMC耐火母线槽系列
CCX-NHMC Series Fire-proof Busbar Trunking

馈入式直线段 Fed into linear segments 尺寸和重量 Dimensions and weight 产品概述 Product Introduction
CCX-NHMC series fire-proof busbar trunking is used for 3
CCX-NHMC系列耐火母线槽适用于消防要求较
馈入式母线槽承载来自电源的电流，不设插接口。 phases 4 wires and 3 phases 5 wires distribution system with
高的交流50~60Hz，额定电压660V及以下，额定电流 higher fire-fighting requirements, the AC current is 50~60Hz,
标准长度为3000mm或4000mm，最小长度为400mm。 250A~5000A的三相四线制、三相五线制供配电系统。使 rated voltage below 660V, rated current is 250A~5000A.
This series product could continue to work under the fire,
Fed busway carry current from the power supply, no plug-in connection. 用本系列产品在火灾情况下一定时间内仍能维持供电，
which could guarantee enough time for start the fire-fighting
以保证有足够的时间启动灭火设备、排烟通风、疏散人
Standard length is 3000mm or 4000mm, the minimum length of 400mm. equipments, venting equipments and evacuate the people, to
群，尽可能的减少人员伤亡和财产损失。该产品主要应 reduce the casualty and property loss. This product is mainly
用于高层建筑，重要的控制中心，地铁等人流量大的公 used for high-rise building, important control center, subway
and other public places with large person flow or high fire-
共场所和其它防火要求较高的场所。 fighting requirements.
结构特点及技术参数 Structural Features and Technical Parameters
■ 母线基本结构 ■ Basic structure of busbar
母线槽采用双层外壳，刚性好、强度大，承载能力 The busbar adopt double hull with good rigidity, strong strength
强。 and high capacity.

图13-1 图13-2 图13-3

铜母线 Copper Busbar 铝母线 Aluminum Busbar

额定 宽度W 高度H 重量(kg/m) 额定 宽度W 高度H 重量(kg/m)
电流 (mm) (mm) 四线 五线 附图 电流 (mm) (mm) 四线 五线 附图
(A) 100%N 100%N,50%PE (A) 100%N 100%N,50%PE
250 142 110 8.54 9.34 250 142 110 6.60 6.84
400 142 110 10.60 11.50 400 142 110 7.78 8.15
630 142 110 14.20 15.54 500 142 115 8.87 9.32
800 142 115 17.20 18.94 630 142 130 10.09 10.66
1000 142 130 20.10 22.24 13-2 800 142 140 10.90 11.55
13-2
1250 142 145 24.00 26.67 1000 142 160 12.52 13.33
1600 142 180 29.84 33.31 1250 142 190 14.95 16.01
2000 142 215 35.68 39.95 1600 142 245 19.39 20.89
2500 142 255 43.40 48.74 2000 142 290 23.05 24.91
3150 142 380 59.58 66.52 2500 142 455 34.77 37.37
4000 142 450 83.33 92.68 3150 142 575 44.48 48.04
13-3 13-3
5000 142 555 102.45 114.20 4000 142 635 49.34 53.39
6300 142 765 134.60 149.80
表格13-2
表格13-1

注：以上数据仅供参考，我公司保留对以上数据的修改权，怒不另行通知。
Drawing 1 Drawing 2
Note: The above data for reference, the company reserves the right to modify the above data, without prior notice.
