CCX3铝合金外壳高强型母线槽系列 CCX3铝合金外壳高强型母线槽系列

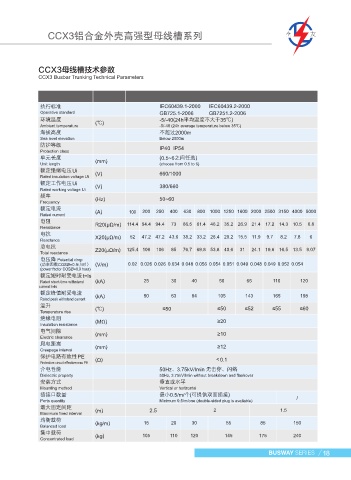

CCX3铝合金外壳高强型母线槽系列 CCX3母线槽技术参数
CCX3 Aluminum Alloy Air Insulation Compact Busbar Trunking CCX3 Busbar Trunking Technical Parameters
产品概述 Product Introduction

CCX3系列铝合金空气绝缘封闭母线，专供交流三相四线、三相五线制，频率50~60Hz，额定电压至
执行标准 IEC60439.1-2000 IEC60439.2-2000
660V，额定工作电流100A~5000A的供配电系统传输电能之用。主要应用于现代化的厂房、车间和高层建 Operative standard GB725.1-2006 GB7251.2-2006
筑，特别适用于空气湿度较大和盐雾污染较大的场所。 环境温度 (℃) -5/-40(24h平均温度不大于35℃)
Ambient temperature -5/-40 (24h average temperature below 35℃)
CCX3 series aluminum alloy air insulation compact busbar trunking, specialized in power transition in the 海拔高度 不超过2000m
distribution system of AC 3 phases 4 wires system and 3 phases 5 wires system, with the frequency of 50~60 Hz, Sea level elevation Below 2000m
rated voltage of 660 V, rated working current of 100A ~ 5000A. It mainly used in modernized workshop, plant and 防护等级
high-rise building, especially in the environment with higher humidity and saline fume pollution. Protection class IP40 IP54
单元长度 (mm) (0.5~6之间任选)
Unit length (choose from 0.5 to 6)
额定绝缘电压 Ui (V) 660/1000
Rated insulation voltage Ui
额定工作电压 Ui (V) 380/660
Rated working voltage Ui
频率 (Hz) 50~60
Frequency
额定电流 (A) 100 200 250 400 630 800 1000 1250 1600 2000 2500 3150 4000 5000
Rated current
电阻 R20(µΩ/m) 114.4 94.4 94.4 73 66.5 61.4 46.2 35.2 26.9 21.4 17.2 14.3 10.5 6.8
Resistance
电抗 X20(µΩ/m) 52 47.2 47.2 43.6 38.2 33.2 26.4 20.2 15.5 11.9 9.7 8.2 7.8 6
Reactance
总电抗 Z20(µΩ/m) 125.4 106 106 85 76.7 69.8 53.8 40.6 31 24.1 19.6 16.5 13.5 9.07
Total reactance
电压降 Potential drop
(功率因数COSØ=0.9小时） (V/m) 0.02 0.026 0.026 0.034 0.048 0.056 0.054 0.051 0.049 0.048 0.049 0.052 0.054
(power factor COSØ=0.9 hour)
额定短时耐受电流 t=Is
Rated short-time withstand (kA) 25 30 40 50 65 110 120
current t=ls
额定峰值耐受电流
四线制 五线制 (kA) 50 63 84 105 143 165 198
额定电流(A) 4 wires system 5 wires system Rated peak withstand current
温升
Rated Current W H W H Temperature rise (℃) ≤50 ≤50 ≤52 ≤55 ≤60
(mm) (mm) (mm) (mm) 绝缘电阻
100 140 92 160 92 Insulation resistance (MΩ) ≥20
200 140 102 160 102 电气间隙 (mm) ≥10
Electric clearance
250 140 102 160 102 爬电距离 (mm) ≥12
100A-2500A 400 140 102 160 102 Creepage interval
630 140 112 160 112 保护电路有效性 PE (Ω) < 0.1
Protective circuit effectiveness PE
800 140 122 160 122 介电性能 50Hz、3.75kV/Imin 无击穿、闪络
1000 140 142 160 142 Dielectric property 50Hz, 3.75kV/lmin without breakdown and flashover
安装方式 垂直或水平
1250 140 162 160 162
Mounting method Vertical or horizontal
1600 140 212 160 212 插接口数量 最小0.5/m/个(可提供双面插接) /
2000 150 230 170 230 Ports quantity Minimum 0.5/m/one (double-sided plug is available)
最大固定间距
2500 150 265 170 265 Maximum fixed interval (m) 2.5 2 1.5
3150 150 290 170 290 均衡载荷
3150A-5000A Balanced load (kg/m) 15 20 30 55 85 150
4000 150 410 170 410
集中载荷
5000 150 480 170 480 Concentrated load (kg) 105 110 120 145 175 240
