铝合金桥架 铝合金桥架
Al-alloy Type Al-alloy Type

LQJ-C(P)-SC1(R) 型水平三通 注：如需圆弧型弯头，订货时请注明并告知弯曲半径

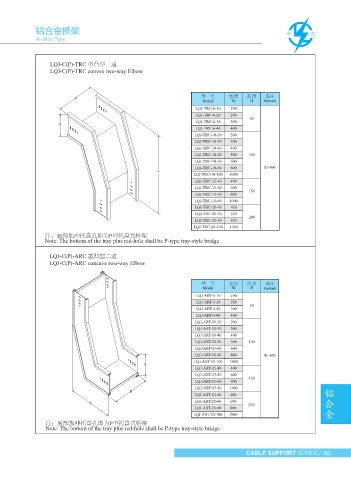

LQJ-C(P)-SC1(R) Horizontal T-joint Note:If arc elbow is needed,bend radius shall be informed LQJ-C(P)-TRC 型凸型二通
LQJ-C(P)-TRC convex two-way Elbow
when ordering.

型 号 宽 度 高 度 备注 型 号 宽 度 高 度 备注
Model W H Remark
Model W H Remark
LQJ-SC(R)-6-10 100
LQJ-TRC-6-10 100
LQJ-SC(R)-6-20 200 60 LQJ-TRC-6-20 200
LQJ-SC(R)-6-30 300 LQJ-TRC-6-30 300 60
LQJ-SC(R)-6-40 400
LQJ-TRC-6-40 400
LQJ-SC(R)-10-20 200 LQJ-TRC-10-20 200
LQJ-SC(R)-10-30 300 LQJ-TRC-10-30 300
LQJ-SC(R)-10-40 400
LQJ-TRC-10-40 400
LQJ-SC(R)-10-50 500 100 LQJ-TRC-10-50 500 100
LQJ-SC(R)-10-60 600 LQJ-TRC-10-60 600
LQJ-SC(R)-10-80 800 R=300
LQJ-TRC-10-80 800 R=300
LQJ-SC(R)-10-100 1000 LQJ-TRC-10-100 1000
LQJ-SC(R)-15-40 400 LQJ-TRC-15-40 400
LQJ-SC(R)-15-50 600
150 LQJ-TRC-15-50 600
LQJ-SC(R)-15-60 800 LQJ-TRC-15-60 800 150
LQJ-SC(R)-15-80 1000 LQJ-TRC-15-80 1000
LQJ-SC(R)-20-40 400 LQJ-TRC-20-40 400
LQJ-SC(R)-20-60 600 LQJ-TRC-20-60 600
LQJ-SC(R)-20-80 800 200 200
LQJ-TRC-20-80 800
LQJ-SC(R)-20-100 1000 LQJ-TRC-20-100 1000
注：底部加冲托盘孔即为P型托盘式桥架
Note: The bottom of the tray plus red-hole shall be P-type tray-style bridge 注：底部加冲托盘孔即为P型托盘式桥架
Note: The bottom of the tray plus red-hole shall be P-type tray-style bridge
LQJ-C(P)-SC4 (R)型水平四通 注：如需圆弧型弯头，订货时请注明并告知弯曲半径
LQJ-C(P)-SC4 (R) Horizontal cross joint Note:If arc elbow is needed,bend radius shall be informed LQJ-C(P)-ARC 型凹型二通
when ordering. LQJ-C(P)-ARC concave two-way Elbow

型 号 宽 度 高 度 备注 型 号 宽 度 高 度 备注
Model W H Remark Model W H Remark
LQJ-ST4(R)-6-10 100 LQJ-ART-6-10 100
LQJ-ST4(R)-6-20 200 LQJ-ART-6-20 200
LQJ-ST4(R)-6-30 300 60 LQJ-ART-6-30 300 60
LQJ-ST4(R)-6-40 400 LQJ-ART-6-40 400
LQJ-ST4(R)-10-20 200 LQJ-ART-10-20 200
LQJ-ST4(R)-10-30 300 LQJ-ART-10-30 300
LQJ-ST4(R)-10-40 400 LQJ-ART-10-40 400
LQJ-ST4(R)-10-50 500 100 LQJ-ART-10-50 500 100
LQJ-ST4(R)-10-60 600 LQJ-ART-10-60 600
LQJ-ST4(R)-10-80 800 R=300 LQJ-ART-10-80 800 R=300
LQJ-ST4(R)-10-100 1000 LQJ-ART-10-100 1000
LQJ-ST4(R)-15-40 400 LQJ-ART-15-40 400
LQJ-ST4(R)-15-50 600 150 LQJ-ART-15-50 600
LQJ-ST4(R)-15-60 800 LQJ-ART-15-60 800 150
LQJ-ST4(R)-15-80 1000 LQJ-ART-15-80 1000 合金 铝
LQJ-ST4(R)-20-40 400 LQJ-ART-20-40 400
LQJ-ST4(R)-20-60 600 LQJ-ART-20-60 600
LQJ-ST4(R)-20-80 800 200 LQJ-ART-20-80 800 200
LQJ-ST4(R)-20-100 1000 LQJ-ART-20-100 1000
注：底部加冲托盘孔即为P型托盘式桥架 注：底部加冲托盘孔即为P型托盘式桥架
Note: The bottom of the tray plus red-hole shall be P-type tray-style bridge Note: The bottom of the tray plus red-hole shall be P-type tray-style bridge

39 CABLE SUPPORT SERIES CABLE SUPPORT SERIES 40
