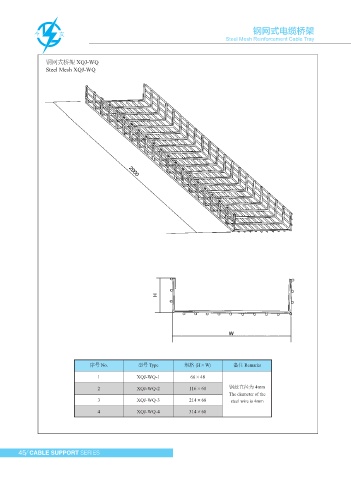

钢网式电缆桥架 钢网式电缆桥架
Steel Mesh Reinforcement Cable Tray Steel Mesh Reinforcement Cable Tray
钢网式桥架 XQJ-WQ 连接板 TPC
Steel Mesh XQJ-WQ Connecting/junction plate TPC
序号 名称
No. Name
接地连接螺钉
1
Setting on the connecting plate
连接板
2 Junction plate
单槽钢支架上的安装
Setting on the single trough steel spider
连接板的安装
Setting on the sconnecting plate
式 网 钢
角钢支架上的安装 吊杆安装
Setting on the angle steel spider Setting on the suspender
序号 No. 型号 Type 规格 (H×W) 备注 Remarks
1 XQJ-WQ-1 66×48
2 XQJ-WQ-2 116×68 钢丝直径为 4mm
The diameter of the
3 XQJ-WQ-3 214×68 steel wire is 4mm
4 XQJ-WQ-4 314×68
