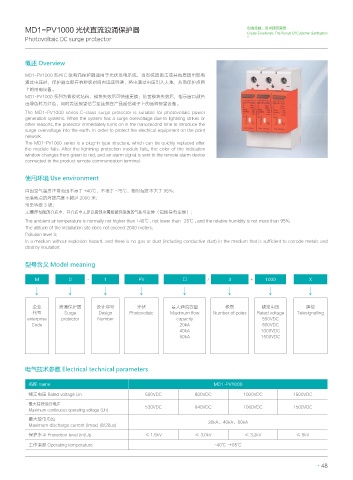

Page 53 - 民电电气有限公司2020

MD1-PV1000 光伏直流浪涌保护器 创造卓越，追求顾客满意
Create Excellence, The Pursuit Of Customer Satisfaction
Photovoltaic DC surge protector

概述 Overview

MD1-PV1000 系列 C 级电涌保护器适用于光伏发电系统，当系统因雷击或其他原因出现电
涌过电压时，保护器立即在纳秒级时间内迅速导通，将电涌过电压引入大地，从而保护点网
上的用电设备。
MD1-PV1000 系列为插拔式结构，模块失效后可快速更换；防雷模块失效后，指示窗口颜色
由绿色转为红色，同时发送报警信号至连接在产品遥信端子上的远程报警设备。
The MD1-PV1000 series C-class surge protector is suitable for photovoltaic power
generation systems. When the system has a surge overvoltage due to lightning strikes or
other reasons, the protector immediately turns on in the nanosecond time to introduce the
surge overvoltage into the earth. In order to protect the electrical equipment on the point
network.
The MD1-PV1000 series is a plug-in type structure, which can be quickly replaced after
the module fails. After the lightning protection module fails, the color of the indication
window changes from green to red, and an alarm signal is sent to the remote alarm device
connected to the product remote communication terminal.

使用环境 Use environment

周围空气温度正常范围不高于 +40℃，不低于 -25℃，相对湿度不大于 95%；
安装地点的海拨高度不超过 2000 米；
污染等级 3 级；
无爆炸危险的介质中，且介质中无足以腐蚀金属和破坏绝缘的气体与尘埃（包括导电尘埃）；
The ambient air temperature is normally not higher than +40℃ , not lower than -25℃ , and the relative humidity is not more than 95%;
The altitude of the installation site does not exceed 2000 meters;
Pollution level 3;
In a medium without explosion hazard, and there is no gas or dust (including conductive dust) in the medium that is sufficient to corrode metals and
destroy insulation;

型号含义 Model meaning

M D - 1 PV □ / 3 + 1000 X
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

企业 浪涌保护器 设计序号 光伏 最大通流容量 极数 额定电压 遥信
代号 Surge Design Photovoltaic Maximum flow Number of poles Rated voltage Telesignalling
enterprise protector Number capacity 550VDC
Code 20kA 800VDC
40kA 1000VDC
60kA 1500VDC

电气技术参数 Electrical technical parameters

名称 name MD1-PV1000
额定电压 Rated voltage Un 500VDC 800VDC 1000VDC 1500VDC
最大持续运行电压 530VDC 840VDC 1060VDC 1500VDC
Maximum continuous operating voltage (Un)
最大放电电流 20kA、40kA、60kA
Maximum discharge current (Imax) (8/20us)
保护水平 Protection level (In)Up ≤ 1.5kV ≤ 3.0kV ≤ 3.2kV ≤ 5kV
工作温度 Operating temperature -40℃ -+85℃
