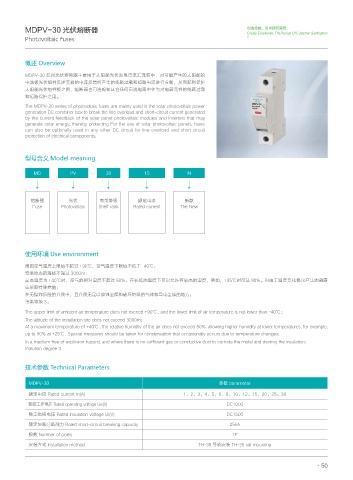

MDPV-30 光伏熔断器 创造卓越，追求顾客满意
Create Excellence, The Pursuit Of Customer Satisfaction
Photovoltaic fuses

概述 Overview

MDPV-30 系列光伏熔断器主要用于太阳能光伏发电直流汇流箱中，对可能产生的太阳能的
电池板光伏组件及逆变器的电流反馈所产生的线路过载和短路电流进行分断，从而起到保护
太阳能光伏组件板之用，熔断器也可选配在其它任何直流电路中作为对电器元件的线路过载
和短路保护之用。
The MDPV-30 series of photovoltaic fuses are mainly used in the solar photovoltaic power
generation DC combiner box to break the line overload and short-circuit current generated
by the current feedback of the solar panel photovoltaic modules and inverters that may
generate solar energy, thereby protecting For the use of solar photovoltaic panels, fuses
can also be optionally used in any other DC circuit for line overload and short circuit
protection of electrical components.

型号含义 Model meaning

MD PV - 30 15 N
↓ ↓ ↓ ↓ ↓

熔断器 光伏 壳架等级 额定电流 新款
Fuse Photovoltaic Shelf rank Rated current The New

使用环境 Use environment
周围空气温度上限值不超过 +90℃，空气温度下限值不低于 -40℃；
安装地点的海拔不超过 3000m；
最高温度为 +40℃时，空气的相对湿度不超过 50%，在较低的温度下可以允许有较高的湿度，例如；+25℃时可达 90%。对由于温度变化偶尔产生的凝露
应采取特殊措施；
在无爆炸危险的介质中，且介质无足以腐蚀金属和破坏绝缘的气体和导电尘埃的地方；
污染等级 3。
The upper limit of ambient air temperature does not exceed +90℃ , and the lower limit of air temperature is not lower than -40℃ ;
The altitude of the installation site does not exceed 3000m;
At a maximum temperature of +40℃ , the relative humidity of the air does not exceed 50%, allowing higher humidity at lower temperatures, for example,
up to 90% at +25℃ . Special measures should be taken for condensation that occasionally occurs due to temperature changes;
In a medium free of explosion hazard, and where there is no sufficient gas or conductive dust to corrode the metal and destroy the insulation;
Pollution degree 3.

技术参数 Technical Parameters

MDPV-30 参数 parameter
额定电流 Rated current In(A) 1、2、3、4、5、6、8、10、12、15、20、25、30
额定工作电压 Rated operating voltage Ue(V) DC1000
额定绝缘电压 Rated insulation voltage Ui(V) DC1500

额定短路分断能力 Rated short-circuit breaking capacity 25kA
极数 Number of poles 1P
安装方式 Installation method TH-35 导轨安装 TH-35 rail mounting
