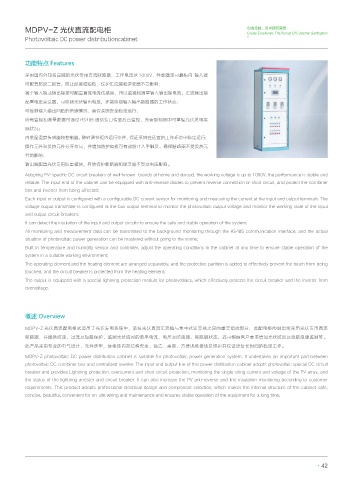

MDPV-Z 光伏直流配电柜 创造卓越，追求顾客满意
Create Excellence, The Pursuit Of Customer Satisfaction
Photovoltaic DC power distributioncabinet

功能特点 Features

采用国内外知名品牌的光伏专用直流断路器，工作电压达 1000V，性能稳定可靠柜内 输入端
可配置防反二极管，防止反接或短路，保护汇流箱和逆变器不受影响；
每个输入端或输出端按可配置直流电流传感器，用以监视和测量输入输出端电流，汇流输出端
配置电压变送器，可监测光伏输出电压，还能监视输入输出断路器的工作状态；
可检测输入输出回路的绝缘情况，确保系统安全稳定运行；
所有监视和测量数据可通过 RS485 通信接口传至后台监控，无需到现场即可掌握光伏发电实
际状况；
内装温湿度传感器和控制器，随时调节柜内运行条件，保证系统在适宜的工作环境中稳定运行；
操作元件和发热元件分开布局，并增加防护隔板可有效防止入手触及，确保断路器不受发热元
件的影响；
输出端配置光伏专用防雷模块，有效保护断路器和逆变器不受过电压影响。
Adopting PV-specific DC circuit breakers of well-known brands at home and abroad, the working voltage is up to 1000V, the performance is stable and
reliable. The input end of the cabinet can be equipped with anti-reverse diodes to prevent reverse connection or short circuit, and protect the combiner
box and inverter from being affected;
Each input or output is configured with a configurable DC current sensor for monitoring and measuring the current at the input and output terminals. The
voltage output transmitter is configured at the bus output terminal to monitor the photovoltaic output voltage and monitor the working state of the input
and output circuit breakers;
It can detect the insulation of the input and output circuits to ensure the safe and stable operation of the system;
All monitoring and measurement data can be transmitted to the background monitoring through the RS485 communication interface, and the actual
situation of photovoltaic power generation can be mastered without going to the scene;
Built-in temperature and humidity sensor and controller, adjust the operating conditions in the cabinet at any time to ensure stable operation of the
system in a suitable working environment;
The operating element and the heating element are arranged separately, and the protective partition is added to effectively prevent the touch from being
touched, and the circuit breaker is protected from the heating element;
The output is equipped with a special lightning protection module for photovoltaics, which effectively protects the circuit breaker and the inverter from
overvoltage.

概述 Overview
MDPV-Z 光伏直流配电柜式适用于光伏发电系统中，承接光伏直流汇流箱与集中式逆变器之间的重要组成部分，此配电柜的进出线采用光伏专用直流
断路器，并提供防雷、过流及短路保护、监测光伏阵列的单串电流、电压及防雷器、断路器状态，还可根据客户要求增加光伏防反及线路绝缘监测等。
此产品采用专业的电气设计、元件选型，使柜体内部结构安全、简洁、美观、方便现场接线及维护并保证设备长时间的稳定工作。
MDPV-Z photovoltaic DC power distribution cabinet is suitable for photovoltaic power generation system. It undertakes an important part between
photovoltaic DC combiner box and centralized inverter. The input and output line of this power distribution cabinet adopts photovoltaic special DC circuit
breaker and provides Lightning protection, overcurrent and short circuit protection, monitoring the single string current and voltage of the PV array, and
the status of the lightning arrester and circuit breaker. It can also increase the PV anti-reverse and line insulation monitoring according to customer
requirements. This product adopts professional electrical design and component selection, which makes the internal structure of the cabinet safe,
concise, beautiful, convenient for on-site wiring and maintenance and ensures stable operation of the equipment for a long time.
