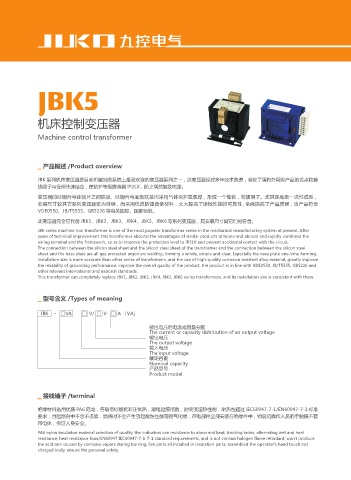

JBK5

机床控制变压器

Machine control transformer

▁ 产品概述 /Product overview

JBK 系列机床变压器是目前机械制造系统上最受欢迎的变压器系列之一，此变压器经过多年技术改进，吸收了国内外同类产品的优点将接
线端子与骨架快速结合，使防护等级提高到 IP2LX，防止偶然触及电路。

变压器的硅钢片与硅钢片之间联接、硅钢片与底板联接均采用气体保护氩弧焊，形成一个整体，简捷明了。尤其是底板一次性成型，
安装尺寸较其它系列变压器更为准确，而采用优质防蚀合金材料，大大提高了接地性能的可靠性 , 全面提高了产品质理，该产品符合
VDE0550、JB/T5555、GB5226 等有关国际、国家标准。
此变压器完全可代替 JBK1、JBK2、JBK3、JBK4、JBK5、JBK6 等系列变压器，其安装尺寸同它们相符合。
JBK series machine tool transformer is one of the most popular transformer series in the mechanical manufacturing system at present. After
years of technical improvement, this transformer absorbs the advantages of similar products at home and abroad and rapidly combines the
wiring terminal and the framework, so as to improve the protection level to IP2LX and prevent accidental contact with the circuit.
The connection between the silicon steel sheet and the silicon steel sheet of the transformer and the connection between the silicon steel
sheet and the base plate are all gas protected argon arc welding, forming a whole, simple and clear. Especially the base plate one-time forming,
installation size is more accurate than other series of transformers, and the use of high-quality corrosion resistant alloy material, greatly improve
the reliability of grounding performance, improve the overall quality of the product, the product is in line with VDE0550, JB/T5555, GB5226 and
other relevant international and national standards.
This transformer can completely replace JBK1, JBK2, JBK3, JBK4, JBK5, JBK6 series transformers, and its installation size is consistent with them.

▁ 型号含义 /Types of meaning

JBK - □VA □ V / □ V - □ A [VA]

输出电压的电流或容量分配
The current or capacity distribution of an output voltage
输出电压
The output voltage
输入电压
The input voltage
额定容量
Nominal capacity
产品型号
Product model

03
▁ 接线端子 /terminal

绝缘材料选用优质 PA6 尼龙，各项指标能抗非正常热，漏电起痕指数，耐交变湿热性能，耐热性超过 IEC60947-7-1/EN60947-7-1 标准
要求，且阻燃剂中不含不卤素，燃烧时不会产生引起腐蚀性酸雨的气化物，带电部件全部安装在绝缘件中，组装后操作人员的手触摸不着
带电体，保证人身安全。
PA6 nylon insulation material selection of quality, the indicators can resistance to abnormal heat, tracking index, alternating wet and heat
resistance, heat resistance than/EN60947 IEC60947-7-1-7-1 standard requirements, and is not contain halogen flame retardant, won't produce
the acid rain caused by corrosive vapors during burning, live parts all installed in insulation parts, assembled the operator's hand touch not
charged body, ensure the personal safety.
