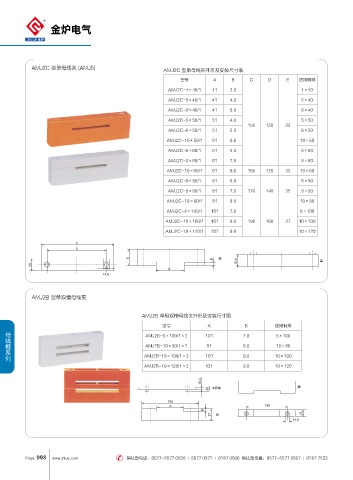

AMJ2C 型单母线夹 (AMJ5)
AMJ2C 型单母线夹外形及安装尺寸表
型号 A B C D E 适用铜排
AMJ2C-4×40/1 41 3.8 4×40
AMJ2C-5×40/1 41 4.8 5×40

AMJ2C-6×40/1 41 5.8 6×40
AMJ2C-5×50/1 51 4.8 5×50
150 120 33
AMJ2C-6×50/1 51 5.8 6×50
AMJ2C-10×50/1 51 9.8 10×50
AMJ2C-6×60/1 61 5.8 6×60
AMJ2C-8×60/1 61 7.8 8×60
AMJ2C-10×60/1 61 9.8 150 120 33 10×60

AMJ2C-6×80/1 81 5.8 6×80
AMJ2C-8×80/1 81 7.8 170 140 35 8×80
AMJ2C-10×80/1 81 9.8 10×80
AMJ2C-8×100/1 101 7.8 8×100
AMJ2C-10×100/1 101 9.8 190 160 37 10×100
AMJ2C-10×120/1 102 9.8 10×120

$
%
& # ऐ ᄦ

"

AMJ2B 型单双槽母线夹

AMJ2B 单相双槽母线夹外形及安装尺寸图
型号 A B 适用铜排
母线框系列
AMJ2B-8×100/1×2 101 7.8 8×100
AMJ2B-10×80/1×2 81 9.8 10×80
AMJ2B-10×100/1×2 101 9.8 10×100
AMJ2B-10×120/1×2 121 9.8 10×120

˗ᫎᄦ ऐ

"
#
ऐ
