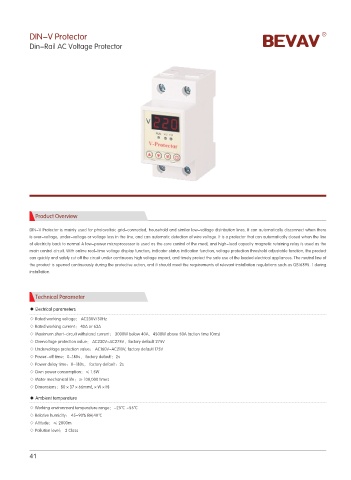

DIN-V Protector
Din-Rail AC Voltage Protector

Product Overview

DIN-V Protector is mainly used for photovoltaic grid-connected, household and similar low-voltage distribution lines. It can automatically disconnect when there
is over-voltage, under-voltage or voltage loss in the line, and can automatic detection of wire voltage. It is a protector that can automatically closed when the line
of electricity back to normal A low-power microprocessor is used as the core control of the meal, and high-load capacity magnetic retaining relay is used as the
main control circuit. With online real-time voltage display function, indicator status indication function, voltage protection threshold adjustable function, the product
can quickly and safely cut off the circuit under continuous high voltage impact, and timely protect the safe use of the loaded electrical appliances. The neutral line of
the product is opened continuously during the protective action, and it should meet the requirements of relevant installation regulations such as GB16895. 1 during
installation.

Technical Parameter

◆ Electrical parameters
◇ Rated working voltage： AC230V/50Hz
◇ Rated working current： 40A or 63A
◇ Maximum short-circuit withstand current： 3000W below 40A，4500W above 50A (action time 10ms)
◇ Overvoltage protection value： AC230V-AC275V，factory default 275V
◇ Undervoltage protection value： AC160V-AC210V, factory default 175V
◇ Power-off time：0-180s， factory default：2s
◇ Power delay time：0-180s， factory default：2s
◇ Own power consumption：≤ 1.5W
◇ Motor mechanical life：≥ 100,000 times
◇ Dimensions：80×37×66mm(L×W×H)
◆ Ambient temperature
◇ Working environment temperature range：-25℃ ~55℃
◇ Relative humidity： 45-90% RH,40℃
◇ Altitude：≤ 2000m
◇ Pollution level： 2 Class
