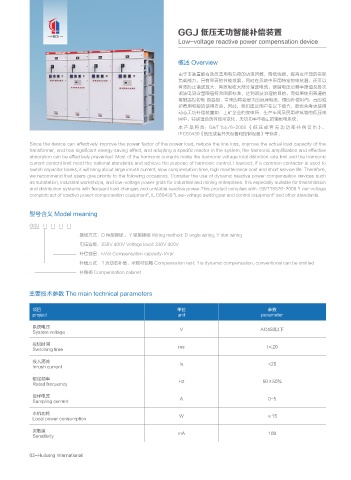

GGJ 低压无功智能补偿装置
HBCE
Low-voltage reactive power compensation device

概述 Overview
由于本装置能有效改善用电负荷的功率因数，降低线损，提高变压器的实际
负载能力，具有显著的节能效果，同时在系统中采用特定的电抗器，还可以
有效防止谐波放大、有效吸收大部分谐波电流，使谐电压总畸率限值及各次
谐波电流含量限值符合国家标准，达到谐波治理的目的。而如果使用普通的
接触器投切电 容器组，带来的将会是大的浪涌电流，慢的补偿时间、高的维
护费用和短的使用寿命，因此，我们建议用户在以下场合，能优先考虑使用
动态无功补偿装置如：工矿企业的变电所、生产车间及民用建筑等的低压电
网中，特别适合负荷经常变化，无功功率不稳定的输配电系统。
本 产 品 符 合：G8/T15576-2008 《 低 压 成 套 无 功 功 率 补 偿 设 备》、
IEC60439《低压成套开关设备和控制设备》等标准。
Since the device can effectively improve the power factor of the power load, reduce the line loss, improve the actual load capacity of the
transformer, and has significant energy saving effect, and adopting a specific reactor in the system, the harmonic amplification and effective
absorption can be effectively prevented. Most of the harmonic currents make the harmonic voltage total distortion rate limit and the harmonic
current content limit meet the national standards and achieve the purpose of harmonic control. However, if a common contactor is used to
switch capacitor banks, it will bring about large inrush current, slow compensation time, high maintenance cost and short service life. Therefore,
we recommend that users give priority to the following occasions. Consider the use of dynamic reactive power compensation devices such
as substation, industrial workshops, and low-voltage power grids for industrial and mining enterprises. It is especially suitable for transmission
and distribution systems with frequent load changes and unstable reactive power.This product complies with: G8/T15576-2008 "Low-voltage
complete set of reactive power compensation equipment", IEC60439 "Low-voltage switchgear and control equipment" and other standards.

型号含义 Model meaning

GGJ □ □ □ □
接线方式：D 角型接线 ，Y 星型接线 Wiring method: D angle wiring, Y star wiring
电压等级：230V 400V Voltage level: 230V 400V
补偿容量：kVar Compensation capacity: kVar
补偿方试：1 为动态补偿，常规可省略 Compensation test: 1 is dynamic compensation, conventional can be omitted
补偿柜 Compensation cabinet

主要技术参数 The main technical parameters

项目 单位 参数
project unit parameter

系统电压
System voltage V AC450以下
投切时间
Switching time ms t≤20

投入涌流 ln <25
Inrush current

额定频率 Hz 50±50%
Rated frequency

取样电流
Sampling current A 0~5
本机功耗
Local power consumption W ≤15

灵敏度 mA 100
Sensitivity
