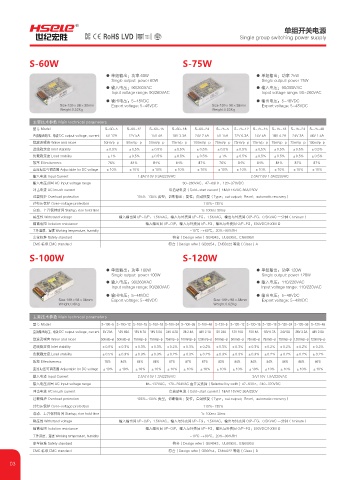

单组开关电源
R
(0& Single group switching power supply
UFTUFE
Gemary
S-60W S-75W

● 单组输出：功率 60W ● 单组输出：功率 75W
Single output: power 60W Single output: power 75W
● 输入电压：90/260VAC ● 输入电压：90/260VAC
Input voltage range: 90/260VAC Input voltage range: 90~260VAC
● 输出电压：5~48VDC ● 输出电压：5~48VDC
Size:159×98×38mm Export voltage: 5~48VDC Size:159×98×38mm Export voltage: 5~48VDC
Weight:0.52Kg Weight:0.53Kg

主要技术参数 Main technical parameters
型号 Model S-60-5 S-60-12 S-60-15 S-60-18 S-60-24 S-75-5 S-75-12 S-75-15 S-75-18 S-75-24 S-75-48
直流输出电压、电流 DC output voltage, current 5V 12A 12V 5A 15V 4A 18V 3.3A 24V 2.5A 5V 15A 12V 6.3A 15V 5A 18V 4.2A 24V 3A 48V 1.5A
纹波及噪音 Wave and niose 50mVp-p 50mVp-p 50mVp-p 75mVp-p 100mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p 75mVp-p 100mVp-p
进线稳定度 Inlet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
负载稳定度 Load stability ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
效率 Effectiveness 76% 84% 84% 84% 87% 76% 84% 84% 84% 87% 87%
直流电压可调范围 Adjustable for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
输入电流 Input Current 1.8A/110V 0.9A/220VAC 2.0A/110V 1.0A/220VAC
输入电压范围 AC Input voltage range 90~260VAC，47~63Hz，120~370VDC
冲击电流 AC inrush current 冷启动电流（Cold-start current）18A/115VAC 36A/230V
过载保护 Overload protection 105%-130% 类型：切断输出；复位：自动恢复（Type：cut output；Resel：automatic recovery）
过电压保护 Over-voltage protection 115%~135%
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
耐压性 Withstand voltage 输入输出间 I/P-O/P：1.5KVAC，输入与外壳间 I/P-FG：1.5KVAC，输出与外壳间 O/P-FG：0.5KVAC 一分钟（1minute）
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG，输出与外壳间 O/P-FG：500VDC/100M Ω
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃，20%~90%RH
安全标准 Safety standard 符合（Design refer）GB4943，UL60950，EN60950
EMC 标准 EMC standard 符合（Design refer）GB9254，EN55022 等级（Class）A
S-100W S-120W

● 单组输出：功率 100W ● 单组输出：功率 120W
Single output: power 100W Single output: power 120W
● 输入电压：90/260VAC ● 输入电压：110/220VAC
Input voltage range: 90/260VAC Input voltage range: 110/220VAC
● 输出电压：5~48VDC ● 输出电压：5~48VDC
Size:199×98×38mm Export voltage: 5~48VDC Size:199×98×38mm Export voltage: 5~48VDC
Weight:0.6Kg Weight:0.62Kg

主要技术参数 Main technical parameters
型号 Model S-100-5 S-100-12 S-100-15 S-100-18 S-100-24 S-100-36 S-100-48 S-120-5 S-120-12 S-120-15 S-120-18 S-120-24 S-120-36 S-120-48
直流输出电压、电流 DC output voltage, current 5V 20A 12V 85A 15V 6.7A 18V 5.5A 24V 4.2A 36 2.8A 48V 2.1A 5V 24A 12V 10A 15V 8A 18V 6.7A 24V 5A 36V 3.3A 48V 2.5A
纹波及噪音 Wave and niose 50mVp-p 50mVp-p 75mVp-p 75mVp-p 75mVp-p 100mVp-p 120mVp-p 50mVp-p 50mVp-p 75mVp-p 75mVp-p 75mVp-p 120mVp-p 120mVp-p
进线稳定度 Inlet stability ±0.5% ±0.3% ±0.3% ±0.3% ±0.2% ±0.3% ±0.2% ±0.3% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2% ±0.2%
负载稳定度 Load stability ±0.5% ±0.3% ±0.3% ±0.3% ±0.2% ±0.3% ±0.2% ±0.3% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2% ±0.2%
效率 Effectiveness 78% 84% 84% 86% 87% 87% 87% 83% 84% 84% 84% 86% 86% 86%
直流电压可调范围 Adjustable for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
输入电流 Input Current 2.5A/110V 1.3A/220VAC 3A/110V 1.5A/220VAC
输入电压范围 AC Input voltage range 85~132VAC，170~264VAC 由开关选择（Selected by swith）47~63Hz，240~370VDC
冲击电流 AC inrush current 冷启动电流（Cold-start current）18A/115VAC 36A/230V
过载保护 Overload protection 105%-130% 类型：切断输出；复位：自动恢复（Type：cut output；Resel：automatic recovery）
过电压保护 Over-voltage protection 115%~135%
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
耐压性 Withstand voltage 输入输出间 I/P-O/P：1.5KVAC，输入与外壳间 I/P-FG：1.5KVAC，输出与外壳间 O/P-FG：0.5KVAC 一分钟（1minute）
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG，输出与外壳间 O/P-FG：500VDC/100M Ω
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃，20%~90%RH
安全标准 Safety standard 符合（Design refer）GB4943，UL60950，EN60950
EMC 标准 EMC standard 符合（Design refer）GB9254，EN55022 等级（Class）B
