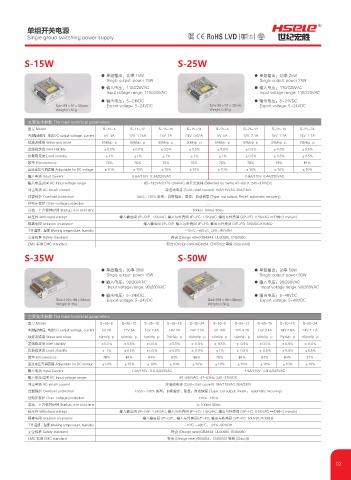

单组开关电源
R
Single group switching power supply Gemary (0&
UFTUFE

S-15W S-25W

● 单组输出：功率 15W ● 单组输出：功率 25W
Single output: power 15W Single output: power 25W
● 输入电压：110/220VAC ● 输入电压：110/220VAC
Input voltage range: 110/220VAC Input voltage range: 110/220VAC
● 输出电压：5~24VDC ● 输出电压：5~24VDC
Size:99×97×35mm Export voltage: 5~24VDC Size:99×97×35mm Export voltage: 5~24VDC
Weight:0.3Kg Weight:0.3Kg

主要技术参数 The main technical parameters
型号 Model S-15-5 S-15-12 S-15-15 S-15-24 S-25-5 S-25-12 S-25-15 S-25-24
直流输出电压、电流 DC output voltage, current 5V 3A 12V 1.25A 15V 1A 24V 0.62A 5V 5A 12V 2.1A 15V 1.7A 24V 1.1A
纹波及噪音 Wave and niose 50Mvp-p 50Mvp-p 50Mvp-p 50Mvp-p 50Mvp-p 50Mvp-p 50Mvp-p 75Mvp-p
进线稳定度 Inlet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
负载稳定度 Load stability ±1% ±1% ±1% ±1% ±1% ±0.5% ±0.5% ±0.5%
效率 Effectiveness 76% 76% 76% 76% 76% 78% 79% 81%
直流电压可调范围 Adjustable for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
输入电流 Input Current 0.6A/110V 0.3A/220VAC 0.8A/110V 0.4A/220VAC
输入电压范围 AC Input voltage range 85-132VAC/170~264VAC 由开关选择 (Selected by swith) 47~63Hz, 240~370VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 15A/115VAC 30A/230V
过载保护 Overload protection 105%~130% 类型：切断输出；复位：自动恢复 (Type: cut output; Reset: automatic recovery)
过电压保护 Over-voltage protection ...
启动、上升保持时间 Startup, rise hold time 200ms 100ms 30ms
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1 minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P, 输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10<C~+60<C, 20%~90%RH
安全标准 Safety standard 符合 (Design refer)GB4943, UL60950, EN60950
EMC 标准 EMC standard 符合 (Design refer)GB9254, EN55022 等级 (Class)A/B
S-35W S-50W

● 单组输出：功率 35W ● 单组输出：功率 50W
Single output: power 15W Single output: power 50W
● 输入电压：90/260VAC ● 输入电压：90/260VAC
Input voltage range: 90/260VAC Input voltage range: 90/260VAC
● 输出电压：5~24VDC ● 输出电压：5~48VDC
Size:129×98×38mm Export voltage: 5~24VDC Size:159×98×38mm Export voltage: 5~48VDC
Weight:0.4Kg Weight:0.5Kg

主要技术参数 The main technical parameters
型号 Model S-35-5 S-35-12 S-35-15 S-35-18 S-35-24 S-50-5 S-50-12 S-50-15 S-50-18 S-50-24
直流输出电压、电流 DC output voltage, current 5V 7A 12V 3A 15V 2.4A 18V 2A 24V 1.5A 5V 10A 12V 4.2A 15V 3.4A 18V 2.8A 24V 2.1 A
纹波及噪音 Wave and niose 50mVp-p 50mVp-p 50mVp-p 75mVp-p 100mVp-p 50mVp-p 50mVp-p 50mVp-p 75mVp-p 100mVp-p
进线稳定度 Inlet stability ±0.5% ±0.5% ±0.5% ±0.5% ± 0.5% ± 0.5% ± 0.5% ±0.5% ±0.5% ± 0.5%
负载稳定度 Load stability ± 1% ±0.5% ±0.5% ±0.5% ± 0.5% ±1% ± 0.5% ± 0.5% ±0.5% ±0.5%
效率 Effectiveness 78% 84% 84% 84% 86% 78% 84% 84% 84% 87%
直流电压可调范围 Adjustable for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
输入电流 Input Current 1.2A/110V 0.6 A/220VAC 1.6A/110V 0.8 A/220VAC
输入电压范围 AC Input voltage range 90~260VAC, 47~63Hz, 240~370VDC
冲击电流 AC inrush current 冷启动电流 (Cold-start current) 18A/115VAC 36A/230V
过载保护 Overload protection 105%~130% 类型：切断输出；复位：自动恢复 (Type: cut output; Reset： automatic recovery)
过电压保护 Over-voltage protection 115%-135%
启动、上升保持时间 Startup, rise hold time 1s 100ms 30ms
耐压性 Withstand voltage 输入输出间 I/P-O/P: 1.5KVAC, 输入与外壳间 I/P-FG: 1.5KVAC, 输出与外壳间 O/P-FG: 0.5KVAC —分钟 (1 minute)
隔离电阻 Isolation resistance 输入输出间 I/P-O/P，输入与外壳间 I/P-FG, 输出与外壳间 O/P-FG: 500VDC/100MΩ
工作温度、湿度 Working temperature, humidity -10℃ ~+60℃， 20%~90%RH
安全标准 Safety standard 符合 (Design refer)GB4943, UL60950, EN60950
EMC 标准 EMC standard 符合 (Design refer)GB9254，EN55022 等级 (Class)B
