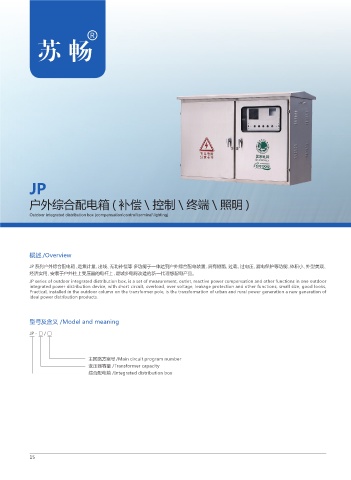

           户外综合配电箱 ( 补偿 \ 控制 \ 终端 \ 照明 )


           Outdoor integrated distribution box (compensation\control\terminal\lighting)






           概述 /Overview

           JP 系列户外综合配电箱,是集计量、出线、无功补偿等 多功能于一体达到户外综合配电装置,具有短路、过载、过电压、漏电保护等功能,体积小、外型美观、
           经济实用,安装于户外柱上变压器的电杆上,是城乡电网改造的新一代理想配电产品。
           JP series of outdoor integrated distribution box, is a set of measurement, outlet, reactive power compensation and other functions in one outdoor
           integrated power distribution device, with short circuit, overload, over voltage, leakage protection and other functions, small size, good looks,
           Practical, installed in the outdoor column on the transformer pole, is the transformation of urban and rural power generation a new generation of
           ideal power distribution products.



           型号及含义 /Model and meaning

           JP - □ / □



                                主回路方案号 /Main circuit program number
                                变压器容量 /Transformer capacity
                                综合配电箱 /Integrated distribution box
