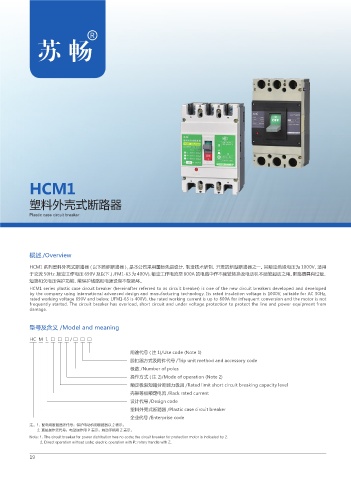

HCM1

塑料外壳式断路器

Plastic case circuit breaker

概述 /Overview

HCM1 系列塑料外壳式断路器 ( 以下简称断路器 )，是本公司采用国际先进设计、制造技术研制、开发的新型断路器之一。其额定绝缘电压为 1000V，适用
于交流 50Hz，额定工作电压 690V 及以下，（JFM1-63 为 400V), 额定工作电流至 800A 的电路中作不频繁转换及电动机不频繁起动之用。断路器具有过载、
短路和欠电压保护功能，能保护线路和电源设备不受损坏。
HCM1 series plastic case circuit breaker (hereinafter referred to as circuit breaker) is one of the new circuit breakers developed and developed
by the company using international advanced design and manufacturing technology. Its rated insulation voltage is 1000V, suitable for AC 50Hz,
rated working voltage 690V and below, (JFM1-63 is 400V), the rated working current is up to 800A for infrequent conversion and the motor is not
frequently started. The circuit breaker has overload, short circuit and under voltage protection to protect the line and power equipment from
damage.

型号及含义 /Model and meaning
HC M 1 □ □ □ / □ □ □

用途代号 ( 注 1)/Use code (Note 1)
脱扣器方式及附件代号 /Trip unit method and accessory code
极数 /Number of poles
操作方式 ( 注 2)/Mode of operation (Note 2)
额定极限短路分断能力级别 /Rated limit short circuit breaking capacity level
壳架等极额定电流 /Rack rated current
设计代号 /Design code
塑料外壳式断路器 /Plastic case circuit breaker
企业代号 /Enterprise code
注：1. 配电用断路器无代号；保护电动机用断路器以 2 表示。
2. 直接操作无代号；电动操作用 P 表示；转动手柄用 Z 表示。
Note: 1. The circuit breaker for power distribution has no code; the circuit breaker for protection motor is indicated by 2.
2. Direct operation without code; electric operation with P; rotary handle with Z.
