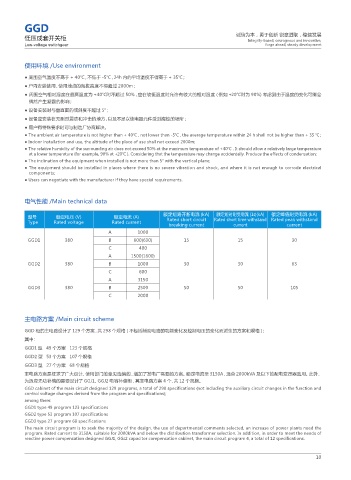

GGD

低压成套开关柜 诚信为本，勇于创新 锐意进取，稳健发展
Integrity-based, courageous and innovative,
Low-voltage switchgear forge ahead, steady development

使用环境 /Use environment

● 周围空气温度不高于 + 40℃，不低于 -5℃，24h 内的平均温度不得高于 + 35℃；
● 户内安装使用，使用地点的海拔高度不得超过 2000m；
● 周围空气相对湿度在最高温度为 +40℃时不超过 50%，应在较低温度时允许有较大的相对温度 ( 例如 +20℃时为 90%) 考虑到由于温度的变化可能会
偶然产生凝露的影响；
● 设备安装时与垂直面的倾斜度不超过 5°；
● 设备应安装在无剧烈震动和冲击的地方，以及不足以使电器元件受到腐蚀的场所；
● 用户有特殊要求时可与制造厂协商解决。
● The ambient air temperature is not higher than + 40℃ , not lower than -5℃ , the average temperature within 24 h shall not be higher than + 35 ℃ ;
● Indoor installation and use, the altitude of the place of use shall not exceed 2000m;
● The relative humidity of the surrounding air does not exceed 50% at the maximum temperature of +40℃ . It should allow a relatively large temperature
at a lower temperature (for example, 90% at +20℃ ). Considering that the temperature may change accidentally. Produce the effects of condensation;
● The inclination of the equipment when installed is not more than 5° with the vertical plane;
● The equipment should be installed in places where there is no severe vibration and shock, and where it is not enough to corrode electrical
components;
● Users can negotiate with the manufacturer if they have special requirements.

电气性能 /Main technical data

额定短路开断电流 (kA) 额定短时耐受电流 (1s)(kA) 额定峰值耐受电流 (kA)
型号 额定电压 (V) 额定电流 (A) Rated short circuit Rated short time withstand Rated peak withstand
Type Rated voltage Rated current breaking current current current
A 1000
GGD1 380 B 600(630) 15 15 30
C 400
A 1500(1600)
GGD2 380 B 1000 30 30 63
C 600
A 3150
GGD3 380 B 2500 50 50 105
C 2000

主电路方案 /Main circuit scheme
GGD 柜的主电路设计了 129 个方案，共 298 个规格 ( 不包括辅助电路的功能变化及控制电压的变化而派生的方案和规格 )；
其中：
GGD1 型 49 个方案 123 个规格
GGD2 型 53 个方案 107 个规格
GGD3 型 27 个方案 68 个规格
主电路方案是征求了广大设计、使用部门的意见选编的，增加了发电厂需要的方案。额定电流至 3150A，适合 2000kVA 及以下的配电变压器选用。此外，
为适应无功补偿的需要设计了 GGJ1、GGJ2 电容补偿柜，其主电路方案 4 个，共 12 个规格。
GGD cabinet of the main circuit designed 129 programs, a total of 298 specifications (not including the auxiliary circuit changes in the function and
control voltage changes derived from the program and specifications);
among them:
GGD1 type 49 program 123 specifications
GGD2 type 53 program 107 specifications
GGD3 type 27 program 68 specifications
The main circuit program is to seek the majority of the design, the use of departmental comments selected, an increase of power plants need the
program. Rated current to 3150A, suitable for 2000kVA and below the distribution transformer selection. In addition, in order to meet the needs of
reactive power compensation designed GGJ1, GGJ2 capacitor compensation cabinet, the main circuit program 4, a total of 12 specifications.
