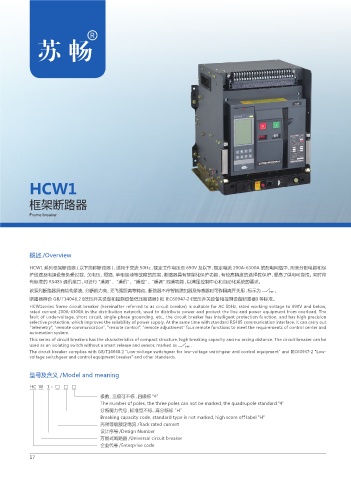

HCW1

框架断路器

Frame breaker

概述 /Overview

HCW1 系列框架断路器 ( 以下简称断路器 )，适用于交流 50Hz，额定工作电压至 690V 及以下，额定电流 200A-6300A 的配电网络中，用来分配电能和保
护线路及电源设备免受过载、欠电压、短路、单相接地等故障的危害，断路器具有智能化保护功能，有较高精度的选择性保护，提高了供电可靠性。同时带
有标准的 RS485 通讯接口，可进行“遥测”、“遥讯”、“遥控”、“遥调”四遥功能，以满足控制中心和自动化系统的要求。
该系列断路器具有结构紧凑、分断能力高、无飞弧距离等特点。断路器不带智能脱扣器及传感器时可作隔离开关用，标示为 。
断路器符合 GB/T14048.2《低压开关设备和控制设备低压断路器》和 IEC60947-2《低压开关设备和控制设备断路器》等标准。
HCW1series frame circuit breaker (hereinafter referred to as circuit breaker) is suitable for AC 50Hz, rated working voltage to 690V and below,
rated current 200A-6300A in the distribution network, used to distribute power and protect the line and power equipment from overload, The
fault of undervoltage, short circuit, single-phase grounding, etc., the circuit breaker has intelligent protection function, and has high precision
selective protection, which improves the reliability of power supply. At the same time with standard RS485 communication interface, it can carry out
"telemetry", "remote communication", "remote control", "remote adjustment" four remote functions to meet the requirements of control center and
automation system.
This series of circuit breakers has the characteristics of compact structure, high breaking capacity and no arcing distance. The circuit breaker can be
used as an isolating switch without a smart release and sensor, marked as .
The circuit breaker complies with GB/T14048.2 "Low-voltage switchgear for low-voltage switchgear and control equipment" and IEC60947-2 "Low-
voltage switchgear and control equipment breaker" and other standards.

型号及含义 /Model and meaning

HC W 1 - □ □ □
极数，三极可不标，四极标“4”
The number of poles, the three poles can not be marked, the quadrupole standard "4"
分断能力代号，标准型不标，高分断标“H”
Breaking capacity code, standard type is not marked, high score off label "H"
壳架等级额定电流 /Rack rated current
设计序号 /Design Number
万能式断路器 /Universal circuit breaker
企业代号 /Enterprise code

17
