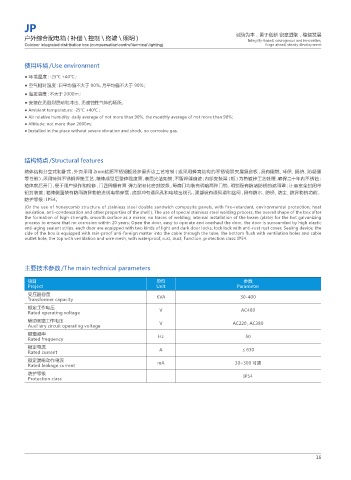

户外综合配电箱 ( 补偿 \ 控制 \ 终端 \ 照明 ) 诚信为本，勇于创新 锐意进取，稳健发展
Integrity-based, courageous and innovative,
Outdoor integrated distribution box (compensation\control\terminal\lighting) forge ahead, steady development

使用环境 /Use environment

● 环境温度：-25℃ +40℃；
● 空气相对湿度：日平均值不大于 90%, 月平均值不大于 90%；
● 海拔高度：不大于 2000m；
● 安装在无剧烈震动和冲击、无腐蚀性气体的场所。
● Ambient temperature: -25℃ +40℃ ;
● Air relative humidity: daily average of not more than 90%, the monthly average of not more than 90%;
● Altitude: not more than 2000m;
● Installed in the place without severe vibration and shock, no corrosive gas.

结构特点 /Structural features
箱体结构分立式和卧式，外壳采用 2mm优质不锈钢板经多重折边工艺弯制 ( 或采用蜂窝结构的不锈钢双夹层复合板，具有阻燃、环保、隔热、防凝露
等性能 )，采用特殊不锈钢焊接工艺，箱体成型后整体强度高，表面光洁如镜，不留焊缝痕迹；内部安装梁 ( 板 ) 为热镀锌工艺处理，确保二十年内不锈蚀；
箱体前后开门，便于用户操作和检修，门四周镶有高 弹力耐老化密封胶条，每扇门均装有明暗两种门锁，明锁配有防堵防锈的遮雨罩；计量室全封闭带
铅封装置；箱体侧面装有防雨防异物的进线电缆穿管，底部冲有通风孔和电缆出线孔，顶部设有通风道和丝网，具有防水、防锈、防尘、防异物的功能，
防护等级：IP54。
(Or the use of honeycomb structure of stainless steel double sandwich composite panels, with fire-retardant, environmental protection, heat
insulation, anti-condensation and other properties of the shell ), The use of special stainless steel welding process, the overall shape of the box after
the formation of high strength, smooth surface as a mirror, no traces of welding; internal installation of the beam (plate) for the hot galvanizing
process to ensure that no corrosion within 20 years; Open the door, easy to operate and overhaul the door, the door is surrounded by high elastic
anti-aging sealant strips, each door are equipped with two kinds of light and dark door locks, lock lock with anti-rust rust cover; Sealing device; the
side of the box is equipped with rain-proof anti-foreign matter into the cable through the tube, the bottom flush with ventilation holes and cable
outlet hole, the top with ventilation and wire mesh, with waterproof, rust, dust, Function, protection class: IP54.

主要技术参数 /The main technical parameters

项目 单位 参数
Project Unit Parameter
变压器容量 KVA 30-400
Transformer capacity
额定工作电压
Rated operating voltage V AC400
辅助回路工作电压
Auxiliary circuit operating voltage V AC220，AC380
额定频率 Hz 50
Rated frequency
额定电流
Rated current A ≤ 630
额定漏电动作电流
Rated leakage current mA 30~300 可调
防护等级 IP54
Protection class
