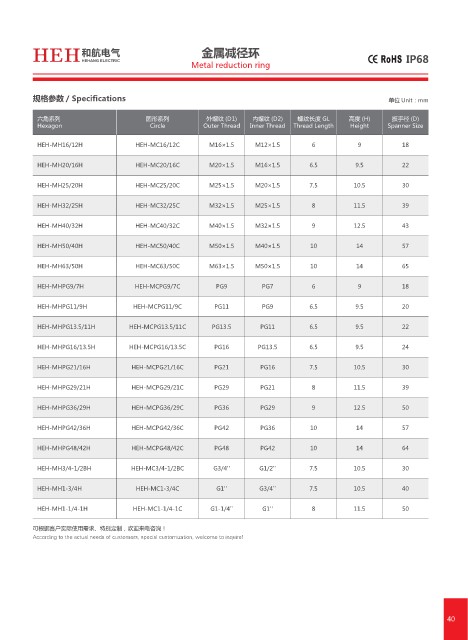

HEH 和航电气 金属减径环
HEHANG ELECTRIC
Metal reduction ring

规格参数 / Specifications 单位 Unit：mm

六角系列 圆形系列 外螺纹 (D1) 内螺纹 (D2) 螺纹长度 GL 高度 (H) 扳手径 (D)
Hexagon Circle Outer Thread Inner Thread Thread Length Height Spanner Size

HEH-MH16/12H HEH-MC16/12C M16×1.5 M12×1.5 6 9 18

HEH-MH20/16H HEH-MC20/16C M20×1.5 M16×1.5 6.5 9.5 22

HEH-MH25/20H HEH-MC25/20C M25×1.5 M20×1.5 7.5 10.5 30

HEH-MH32/25H HEH-MC32/25C M32×1.5 M25×1.5 8 11.5 39

HEH-MH40/32H HEH-MC40/32C M40×1.5 M32×1.5 9 12.5 43

HEH-MH50/40H HEH-MC50/40C M50×1.5 M40×1.5 10 14 57

HEH-MH63/50H HEH-MC63/50C M63×1.5 M50×1.5 10 14 65

HEH-MHPG9/7H HEH-MCPG9/7C PG9 PG7 6 9 18

HEH-MHPG11/9H HEH-MCPG11/9C PG11 PG9 6.5 9.5 20

HEH-MHPG13.5/11H HEH-MCPG13.5/11C PG13.5 PG11 6.5 9.5 22

HEH-MHPG16/13.5H HEH-MCPG16/13.5C PG16 PG13.5 6.5 9.5 24

HEH-MHPG21/16H HEH-MCPG21/16C PG21 PG16 7.5 10.5 30

HEH-MHPG29/21H HEH-MCPG29/21C PG29 PG21 8 11.5 39

HEH-MHPG36/29H HEH-MCPG36/29C PG36 PG29 9 12.5 50

HEH-MHPG42/36H HEH-MCPG42/36C PG42 PG36 10 14 57

HEH-MHPG48/42H HEH-MCPG48/42C PG48 PG42 10 14 64

HEH-MH3/4-1/2BH HEH-MC3/4-1/2BC G3/4'' G1/2'' 7.5 10.5 30

HEH-MH1-3/4H HEH-MC1-3/4C G1'' G3/4'' 7.5 10.5 40

HEH-MH1-1/4-1H HEH-MC1-1/4-1C G1-1/4'' G1'' 8 11.5 50

可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
