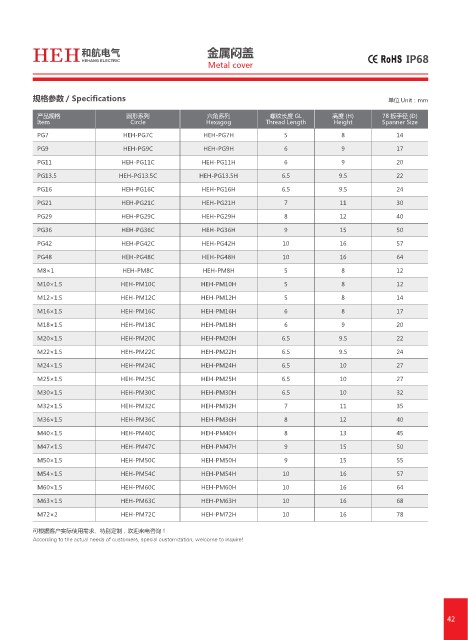

HEH 和航电气 金属闷盖
HEHANG ELECTRIC
Metal cover
规格参数 / Specifications 单位 Unit：mm
产品规格 圆形系列 六角系列 螺纹长度 GL 高度 (H) 78 扳手径 (D)
Item Circle Hexagog Thread Length Height Spanner Size
PG7 HEH-PG7C HEH-PG7H 5 8 14
PG9 HEH-PG9C HEH-PG9H 6 9 17
PG11 HEH-PG11C HEH-PG11H 6 9 20
PG13.5 HEH-PG13.5C HEH-PG13.5H 6.5 9.5 22
PG16 HEH-PG16C HEH-PG16H 6.5 9.5 24
PG21 HEH-PG21C HEH-PG21H 7 11 30
PG29 HEH-PG29C HEH-PG29H 8 12 40
PG36 HEH-PG36C HEH-PG36H 9 15 50
PG42 HEH-PG42C HEH-PG42H 10 16 57
PG48 HEH-PG48C HEH-PG48H 10 16 64
M8×1 HEH-PM8C HEH-PM8H 5 8 12
M10×1.5 HEH-PM10C HEH-PM10H 5 8 12
M12×1.5 HEH-PM12C HEH-PM12H 5 8 14
M16×1.5 HEH-PM16C HEH-PM16H 6 8 17
M18×1.5 HEH-PM18C HEH-PM18H 6 9 20
M20×1.5 HEH-PM20C HEH-PM20H 6.5 9.5 22
M22×1.5 HEH-PM22C HEH-PM22H 6.5 9.5 24
M24×1.5 HEH-PM24C HEH-PM24H 6.5 10 27
M25×1.5 HEH-PM25C HEH-PM25H 6.5 10 27
M30×1.5 HEH-PM30C HEH-PM30H 6.5 10 32
M32×1.5 HEH-PM32C HEH-PM32H 7 11 35
M36×1.5 HEH-PM36C HEH-PM36H 8 12 40
M40×1.5 HEH-PM40C HEH-PM40H 8 13 45
M47×1.5 HEH-PM47C HEH-PM47H 9 15 50
M50×1.5 HEH-PM50C HEH-PM50H 9 15 55
M54×1.5 HEH-PM54C HEH-PM54H 10 16 57
M60×1.5 HEH-PM60C HEH-PM60H 10 16 64
M63×1.5 HEH-PM63C HEH-PM63H 10 16 68
M72×2 HEH-PM72C HEH-PM72H 10 16 78
可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
