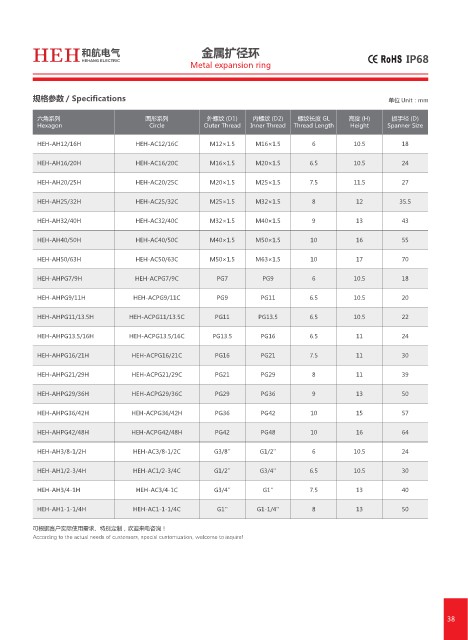

HEH 和航电气 金属扩径环
HEHANG ELECTRIC
Metal expansion ring

规格参数 / Specifications 单位 Unit：mm

六角系列 圆形系列 外螺纹 (D1) 内螺纹 (D2) 螺纹长度 GL 高度 (H) 扳手径 (D)
Hexagon Circle Outer Thread Inner Thread Thread Length Height Spanner Size
HEH-AH12/16H HEH-AC12/16C M12×1.5 M16×1.5 6 10.5 18

HEH-AH16/20H HEH-AC16/20C M16×1.5 M20×1.5 6.5 10.5 24

HEH-AH20/25H HEH-AC20/25C M20×1.5 M25×1.5 7.5 11.5 27

HEH-AH25/32H HEH-AC25/32C M25×1.5 M32×1.5 8 12 35.5

HEH-AH32/40H HEH-AC32/40C M32×1.5 M40×1.5 9 13 43

HEH-AH40/50H HEH-AC40/50C M40×1.5 M50×1.5 10 16 55

HEH-AH50/63H HEH-AC50/63C M50×1.5 M63×1.5 10 17 70

HEH-AHPG7/9H HEH-ACPG7/9C PG7 PG9 6 10.5 18

HEH-AHPG9/11H HEH-ACPG9/11C PG9 PG11 6.5 10.5 20

HEH-AHPG11/13.5H HEH-ACPG11/13.5C PG11 PG13.5 6.5 10.5 22

HEH-AHPG13.5/16H HEH-ACPG13.5/16C PG13.5 PG16 6.5 11 24

HEH-AHPG16/21H HEH-ACPG16/21C PG16 PG21 7.5 11 30

HEH-AHPG21/29H HEH-ACPG21/29C PG21 PG29 8 11 39

HEH-AHPG29/36H HEH-ACPG29/36C PG29 PG36 9 13 50

HEH-AHPG36/42H HEH-ACPG36/42H PG36 PG42 10 15 57

HEH-AHPG42/48H HEH-ACPG42/48H PG42 PG48 10 16 64

HEH-AH3/8-1/2H HEH-AC3/8-1/2C G3/8'' G1/2'' 6 10.5 24

HEH-AH1/2-3/4H HEH-AC1/2-3/4C G1/2'' G3/4'' 6.5 10.5 30

HEH-AH3/4-1H HEH-AC3/4-1C G3/4'' G1'' 7.5 13 40

HEH-AH1-1-1/4H HEH-AC1-1-1/4C G1'' G1-1/4'' 8 13 50

可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
