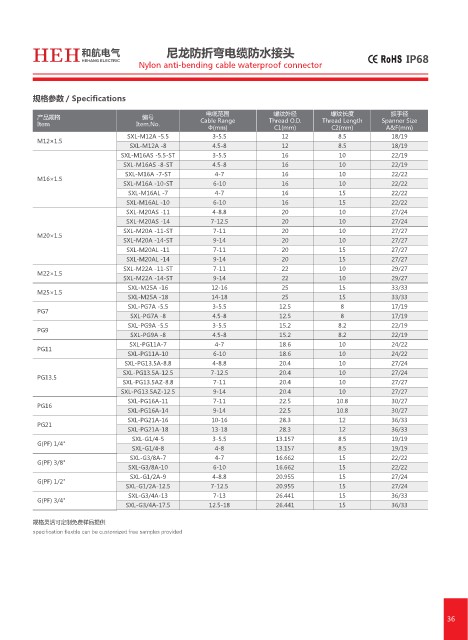

HEH 和航电气 尼龙防折弯电缆防水接头
HEHANG ELECTRIC
Nylon anti-bending cable waterproof connector

规格参数 / Specifications

电缆范围 螺纹外径 螺纹长度 扳手径
产品规格 编号 Cable Range Thread O.D. Thread Length Spanner Size
Item Item.No. Ф(mm) C1(mm) C2(mm) A&F(mm)
SXL-M12A -5.5 3-5.5 12 8.5 18/19
M12×1.5
SXL-M12A -8 4.5-8 12 8.5 18/19
SXL-M16AS -5.5-ST 3-5.5 16 10 22/19
SXL-M16AS -8-ST 4.5-8 16 10 22/19
SXL-M16A -7-ST 4-7 16 10 22/22
M16×1.5
SXL-M16A -10-ST 6-10 16 10 22/22
SXL-M16AL -7 4-7 16 15 22/22
SXL-M16AL -10 6-10 16 15 22/22
SXL-M20AS -11 4-8.8 20 10 27/24
SXL-M20AS -14 7-12.5 20 10 27/24
SXL-M20A -11-ST 7-11 20 10 27/27
M20×1.5
SXL-M20A -14-ST 9-14 20 10 27/27
SXL-M20AL -11 7-11 20 15 27/27
SXL-M20AL -14 9-14 20 15 27/27
SXL-M22A -11-ST 7-11 22 10 29/27
M22×1.5
SXL-M22A -14-ST 9-14 22 10 29/27
SXL-M25A -16 12-16 25 15 33/33
M25×1.5
SXL-M25A -18 14-18 25 15 33/33
SXL-PG7A -5.5 3-5.5 12.5 8 17/19
PG7
SXL-PG7A -8 4.5-8 12.5 8 17/19
SXL-PG9A -5.5 3-5.5 15.2 8.2 22/19
PG9
SXL-PG9A -8 4.5-8 15.2 8.2 22/19
SXL-PG11A-7 4-7 18.6 10 24/22
PG11
SXL-PG11A-10 6-10 18.6 10 24/22
SXL-PG13.5A-8.8 4-8.8 20.4 10 27/24
SXL-PG13.5A-12.5 7-12.5 20.4 10 27/24
PG13.5
SXL-PG13.5AZ-8.8 7-11 20.4 10 27/27
SXL-PG13.5AZ-12.5 9-14 20.4 10 27/27
SXL-PG16A-11 7-11 22.5 10.8 30/27
PG16
SXL-PG16A-14 9-14 22.5 10.8 30/27
SXL-PG21A-16 10-16 28.3 12 36/33
PG21
SXL-PG21A-18 13-18 28.3 12 36/33
SXL-G1/4-5 3-5.5 13.157 8.5 19/19
G(PF) 1/4"
SXL-G1/4-8 4-8 13.157 8.5 19/19
SXL-G3/8A-7 4-7 16.662 15 22/22
G(PF) 3/8"
SXL-G3/8A-10 6-10 16.662 15 22/22
SXL-G1/2A-9 4-8.8 20.955 15 27/24
G(PF) 1/2"
SXL-G1/2A-12.5 7-12.5 20.955 15 27/24
SXL-G3/4A-13 7-13 26.441 15 36/33
G(PF) 3/4"
SXL-G3/4A-17.5 12.5-18 26.441 15 36/33

规格灵活可定制免费样品提供
specification flexble can be customized free samples provided
