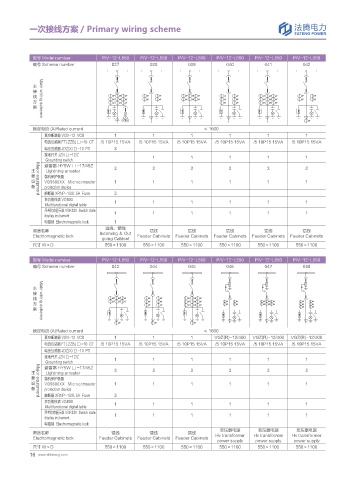

一次接线方案 / Primary wiring scheme





            型号 Model number         P/V-12-L550  P/V-12-L550  P/V-12-L550   P/V-12-L550  P/V-12-L550  P/V-12-L550
            编号 Scheme number           037           038          039          040          041          042



            主
            接
            线  Main wiring scheme
            方
            案



            额定电流 (A)Rated current                                      ≤ 1600
                真空断路器 VGV-12  VCB       1            1             1            1            1            1
                电流互感器 FTLZZBJ □ -10  CT  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA
                电压互感器 JDZ(X) □ -10  PT  3
                接地开关 JZN □ -12/Z
                 Grounding switch                    1             1            1            1            1
                避雷器 HY5W □ -17/45Z
            主    Lightning arrester     3            3             3            3            3            3
            要   微机保护装置
            设  Major equipment  VG9600XX    Microcomputer   1  1   1            1            1            1
            备   protection device
                熔断器 XRNP-10/0. 5A  Fuse  3
                多功能仪表 VG800
                 Multifunctional digital table  1    1             1            1            1            1
                开关状态显示仪 VGK330  Switch state
                display instrument      1            1             1            1            1            1
                电磁锁  Electromagnetic lock  1
                                     进线、馈线
            用途名称                   Incoming & Out   馈线            馈线           馈线           馈线           馈线
            Electromagnetic lock                Feeder Cabinets  Feeder Cabinets  Feeder Cabinets  Feeder Cabinets  Feeder Cabinets
                                    going Cabinet
            尺寸 W×D                   550×1100     550×1100     550×1100      550×1100     550×1100     550×1100

            型号 Model number         P/V-12-L550  P/V-12-L550  P/V-12-L550   P/V-12-L550  P/V-12-L550  P/V-12-L550
            编号 Scheme number           043           044          045          046          047          048


            主
            接
            线  Main wiring scheme
            方
            案



            额定电流 (A)Rated current                                      ≤ 1600
                真空断路器 VGV-12  VCB       1            1             1       VGZ(R)-12/400  VGZ(R)-12/400  VGZ(R)-12/400
                电流互感器 FTLZZBJ □ -10  CT  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA  /5 10P15 15VA
                电压互感器 JDZ(X) □ -10  PT
                接地开关 JZN □ -12/Z        1            1             1            1            1            1
                 Grounding switch
                避雷器 HY5W □ -17/45Z
            主    Lightning arrester     3            3             3            3            3            3
            要   微机保护装置
            设  Major equipment  VG9600XX    Microcomputer   1  1   1            1            1            1
            备   protection device
                熔断器 XRNP-10/0. 5A  Fuse  3
                多功能仪表 VG800
                 Multifunctional digital table  1    1             1            1            1            1
                开关状态显示仪 VGK330  Switch state
                display instrument      1            1             1            1            1            1
                电磁锁  Electromagnetic lock
                                                                             变压器电源        变压器电源        变压器电源
            用途名称                       馈线            馈线           馈线
            Electromagnetic lock   Feeder Cabinets  Feeder Cabinets  Feeder Cabinets  Hv transformer   Hv transformer   Hv transformer
                                                                            power supply  power supply  power supply
            尺寸 W×D                   550×1100     550×1100     550×1100      550×1100     550×1100     550×1100
