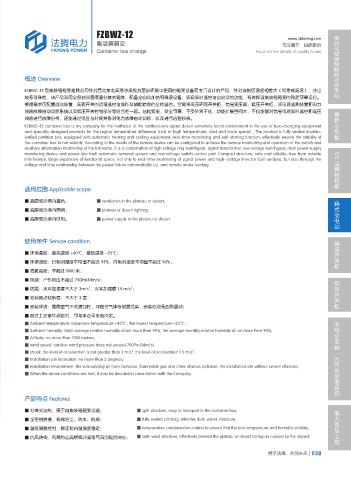

FZBWZ-12 模块化智能预制舱式变电站
www.shfateng.com
集装箱箱变 专注细节 品质取胜
Container box change Focus on the details of quality to win

概述 Overview

FZBWZ-12 型集装箱箱变是我公司针对西北东北高寒沙漠极其恶劣环境中使用的箱变设备而专门设计的产品，针对该地区温度相差大（低寒或高温），沙尘
较多等殊性，该产品采用全密封双层隔温分体式箱体，配备全自动加热和降温设备，实现实时监控与自启动的功能，有效保证集装箱箱变的稳定可靠运行。
根据需求可配置远动装置，实现开关的远程监控与操作及辅助信息的全称监控。它是将高压环网开关柜、信号变压器、低压开关柜、双电源监测装置和电力
线路故障自动切除系统以及低压开关控制部分等组合在一起。结构紧凑，安全可靠，不受外界干扰，功能扩展空间大，不仅能够对信号电源实时监控和高压 最新小型柜
线路进行故障分析，还能通过电压与时间关系对电力故障自动切除，以及进行远程抄表。
FZBWZ-12 container box is my company for the northeast of the northeastern alpine desert extremely harsh environment in the use of box-changing equipment
and specially designed products for the region temperature difference (cold or high temperature), dust and more special , The product is fully sealed double-
walled partition box, equipped with automatic heating and cooling equipment, real-time monitoring and self-starting function, effectively ensure the stability of
the container box to run reliably. According to the needs of the remote device can be configured to achieve the remote monitoring and operation of the switch and
auxiliary information monitoring of the full name. It is a combination of high voltage ring switchgear, signal transformer, low voltage switchgear, dual power supply
monitoring device and power line fault automatic removal system and low voltage switch control part. Compact structure, safe and reliable, free from outside GE
interference, large expansion of functional space, not only to real-time monitoring of signal power and high-voltage lines for fault analysis, but also through the 品牌授权柜
voltage and time relationship between the power failure automatically cut, and remote meter reading.

适用范围 Applicable scope
箱式变电站
■ 高原或沙漠内通风； ■ ventilation in the plateau or desert;
■ 高原或沙漠内照明； ■ plateau or desert lighting;
■ 高原或沙漠内供电。 ■ power supply in the plateau or desert.

使用条件 Service condition 高压开关柜

■ 环境温度：最高温度 +40℃，最低温度 -25℃；
■ 环境湿度：日相对湿度平均值不超过 95%，月相对湿度平均值不超过 90%；
■ 海拔高度：不超过 1000 米；
■ 风速：户外风压不超过 700Pa(34m/s)； 低压开关柜
2
2
■ 防震：水平加速度不大于 3m/s ，水平加速度 1.5 m/s ；
■ 安装地点倾斜度：不大于 3 度；
■ 安装环境：周围空气不受腐蚀性，可燃性气体等明显污染，安装地点无剧烈震动；
■ 超过上述条件规定时，可与本公司协商决定。
电缆分支箱、元件及配电系统
■ Ambient temperature: maximum temperature +40℃ , the lowest temperature -25℃ ;
■ Ambient humidity: Daily average relative humidity of not more than 95%, the average monthly relative humidity of not more than 90%;
■ Altitude: no more than 1000 meters;
■ wind speed: outdoor wind pressure does not exceed 700Pa (34m/s);
2
2
■ shock: the level of acceleration is not greater than 3 m/s , the level of acceleration 1.5 m/s ;
■ Installation site inclination: no more than 3 degrees;
■ installation environment: the surrounding air from corrosive, flammable gas and other obvious pollution, the installation site without severe vibration;
■ When the above conditions are met, it may be decided in consultation with the Company.

产品特点 Features

■ 分体式结构，便于向集装箱箱变运输； ■ split structure, easy to transport to the container box; 电力总包工程
■ 全密封拼接，有效防尘、防水、防潮； ■ fully sealed stitching, effective dust, water, moisture;
■ 温度凝露控制，保证箱内温湿度稳定； ■ temperature condensation control to ensure that the box temperature and humidity stability;
■ 抗风结构，有效防止高原或沙漠强气流引起的冲击； ■ anti-wind structure, effectively prevent the plateau or desert strong air caused by the impact;
