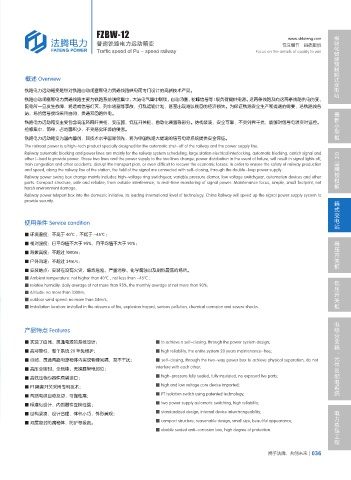

Page 45 - 法腾电力科技有限公司

FZBW-12 模块化智能预制舱式变电站
www.shfateng.com
普速铁路电力远动箱变 专注细节 品质取胜
Traffic speed of Pu - speed railway Focus on the details of quality to win

概述 Overview

铁路电力远动箱变是针对铁路自动闭塞和电力贯通线路供电而专门设计的高新技术产品。
铁路自动闭塞和电力贯通线路主要为铁路系统调度集中、大站电气集中联锁、自动闭塞、鸵峰信号等 I 级负荷提供电源。这两条线路及向这两条线路供电的变、
配电所一旦发生故障，将造成信号灯灭、列车堵塞等事故，打乱运输计划，甚至出现难以挽回的经济损失。为保证铁路安全生产和提速的需要，沿铁路线各 最新小型柜
站、场的信号接均采用自闭，贯通双回路供电。
铁路电力远动箱变主要包含高压环网开关柜，变压嚣，低压开关柜、自动化装置等部分。结构紧凑，安全可靠，不受外界干扰，能够对信号电源实时监控。
检修集中，简单，占地面积少，不受恶劣环境的侵害。
铁路电力远动箱变为国内首创，其技术水平国际领先，将为中国铁路大提速的信号电源系统提供安全保征。
The railroad power is a high-tech product specially designed for the automatic shut-off of the railway and the power supply line.
Railway automatic blocking and power lines are mainly for the railway system scheduling, large station electrical interlocking, automatic blocking, ostrich signal and GE
other I-load to provide power. These two lines and the power supply to the two lines change, power distribution in the event of failure, will result in signal lights off, 品牌授权柜
train congestion and other accidents, disrupt the transport plan, or even difficult to recover the economic losses. In order to ensure the safety of railway production
and speed, along the railway line of the station, the field of the signal are connected with self-closing, through the double-loop power supply.
Railway power swing box change mainly includes high-voltage ring switchgear, variable pressure clamor, low voltage switchgear, automation devices and other
parts. Compact structure, safe and reliable, from outside interference, to real-time monitoring of signal power. Maintenance focus, simple, small footprint, not
harsh environment damage.
Railway power teleport box into the domestic initiative, its leading international level of technology, China Railway will speed up the signal power supply system to 箱式变电站
provide security.

使用条件 Service condition

■ 环境温度：不高于 40℃，不低于 -45℃；
高压开关柜
■ 相对湿度：日平均值不大于 95%，月平均值不大于 90%；
■ 海拔高度：不超过 1000m；
■ 户外风速：不超过 34m/s；
■ 安装地点：安装在没有火灾、爆炸危险、严重污秽、化学腐蚀以及剧烈震荡的场所。
■ Ambient temperature: not higher than 40℃ , not less than -45℃ ; 低压开关柜
■ relative humidity: daily average of not more than 95%, the monthly average of not more than 90%;
■ Altitude: no more than 1000m;
■ outdoor wind speed: no more than 34m/s;
■ Installation location: installed in the absence of fire, explosion hazard, serious pollution, chemical corrosion and severe shocks.

电缆分支箱、元件及配电系统
产品特点 Features

■ 实现了自闭、贯通电源的系统设计； ■ to achieve a self-closing, through the power system design;
■ 高可靠性，整个系统 20 年免维护； ■ high reliability, the entire system 20 years maintenance-free;
■ 自闭、贯通两路电源箱体内实现物理间隔，互不干扰； ■ self-closing, through the two-way power box to achieve physical separation, do not
■ 高压全密封、全绝缘、无裸露带电部位； interfere with each other;
■ 高低压核心器件原装进口； ■ high-pressure fully sealed, fully insulated, no exposed live parts;
■ high and low voltage core device imported;
■ PT 隔离开关采用专利技术；
■ 两路电源自动投切，可靠性高； ■ PT isolation switch using patented technology;
■ two power supply automatic switching, high reliability;
■ 标准化设计，内部器件互换性强； 电力总包工程
■ 结构紧凑，设计合理，体积小巧，外形美观； ■ standardized design, internal device interchangeability;
■ 双层密封防腐箱体，防护等级高。 ■ compact structure, reasonable design, small size, beautiful appearance;
■ double sealed anti-corrosion box, high degree of protection.

携手法腾、共创未来 036
