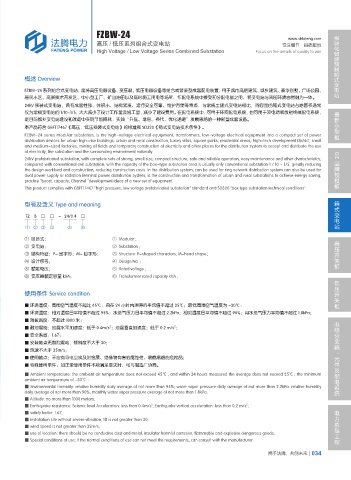

FZBW-24                                                                            模块化智能预制舱式变电站
                                                                                                    www.shfateng.com
                                  高压 / 低压系列组合式变电站                                                 专注细节    品质取胜
                                  High Voltage / Low Voltage Series Combined Substation  Focus on the details of quality to win




          概述 Overview

          FZBW-24 系列组合式变电站,是将高压电器设备、变压器、低压电器设备等组合成紧凑型成套配电装置,用于城市高层建筑、城乡建筑、豪华别墅、广场公园、
          居民小区、高新技术开发区、中小型工厂、矿山油田以及临时施工用电等场所,作配电系统中接受和分配电能之用,将变电站与周围环境自然融为—体。
          24kV 预装式变电站,具有成套性强、体积小、结构紧凑、运行安全可靠、维护方便等特点,与常规土建式变电站相比,同容量的箱式变电站占地面积通常                                     最新小型柜
          仅为常规变电站的 1/10~1/5,大大减少了设计工作量及施工量,减少了建设费用。在配电系统中,可用于环网配电系统,也可用于双电源或放射终端配电系统,
          是目前城乡变电站建设和改造中实现节能降耗,实践“升压、增容、换代、优化通道”发展思路的一种新型成套设备。
          本产品符合 GBFT17467《高压,低压预装式变电站》的标准和 SD320《箱式变电站技术条件》。
          FZBW-24 series modular substation, is the high-voltage electrical equipment, transformers, low-voltage electrical equipment into a compact set of power
          distribution devices for urban high-rise buildings, urban and rural construction, luxury villas, square parks, residential areas, high-tech development District, small
          and medium-sized factories, mining oil fields and temporary construction of electricity and other places for the distribution system to accept and distribute the use
          of electricity, the substation and the surrounding environment naturally
                                                                                                                     品牌授权柜
          24kV prefabricated substation, with complete sets of strong, small size, compact structure, safe and reliable operation, easy maintenance and other characteristics,   GE
          compared with conventional civil substation, with the capacity of the box-type substation area is usually only conventional substation 1 / 10 ~ 1/5, greatly reducing
          the design workload and construction, reducing construction costs. In the distribution system, can be used for ring network distribution system can also be used for
          dual power supply or radiation terminal power distribution system, is the construction and transformation of urban and rural substations to achieve energy saving,
          practice "boost, capacity, Channel "development ideas of a new set of equipment.
          This product complies with GBFT17467 "high pressure, low voltage prefabricated substation" standard and SD320 "box type substation technical conditions".
                                                                                                                     箱式变电站
          型号及含义 Type and meaning

          FZ    B    □    □    -   24/0.4    □
          ① ② ③   ④     ⑤    ⑥

          ①  组合式;                       ①  Modular ;                                                                 高压开关柜
          ②  变电站;                       ②  Substation ;
          ③  结构特征:P- 品字形;M- 目字形;        ③  Structure: P-shaped characters; M-head shape ;
          ④  设计序号;                      ④  Design No. ;
          ⑤  额定电压;                      ⑤  Rated voltage ;
          ⑥  变压器额定容量 kVA;               ⑥  Transformer rated capacity kVA ;
                                                                                                                     低压开关柜
          使用条件 Service condition

          ■ 环境温度:周围空气温度不超过 45℃,且在 24 小时内测得的平均值不超过 35℃;最低周围空气温度为 -30℃:
          ■ 环境湿度:相对湿度日平均值不超过 95%:水蒸气压力日平均值不超过 2.2kPa;相对湿度日平均值不超过 90%;月水蒸气压力平均值不超过 1.8kPa;
          ■ 海拔高度:不超过 1000 米;                                                                                         电缆分支箱、元件及配电系统
                                                             2
                                       2
          ■ 耐地震能:地震水平加速度:低于 0.4m/s ;地震垂直加速度:低于 0.2 m/s ;
          ■ 安全系数:1.67;
          ■ 安装地点无剧烈震动,倾斜度不大于 30;
          ■ 风速不大于 35m/s;
          ■ 使用地点:不应有导电尘埃及对金属、绝缘物有害的腐蚀性、易燃易爆的危险品;
          ■ 特殊使用条件:如正常使用条件不能满足要求时,可与制造厂协商。
          ■ Ambient temperature: the ambient air temperature does not exceed 45℃ , and within 24 hours measured the average does not exceed 35℃ ; the minimum
          ambient air temperature of -30℃ :
          ■ Environmental humidity: relative humidity daily average of not more than 95%; water vapor pressure daily average of not more than 2.2kPa: relative humidity
          daily average of not more than 90%; monthly water vapor pressure average of not more than 1.8kPa;
          ■ Altitude: no more than 1000 meters;
                                                     2
          ■ Earthquake resistance: Seismic level Acceleration: less than 0.4m/s ; Earthquake vertical acceleration: less than 0.2 m/s ; 2  电力总包工程
          ■ safety factor: 1.67;
          ■ installation site without severe vibration, tilt is not greater than 30;
          ■ wind speed is not greater than 35m/s;
          ■ use of location: there should be no conductive dust and metal, insulator harmful corrosive, flammable and explosive dangerous goods;
          ■ Special conditions of use: If the normal conditions of use can not meet the requirements, can consult with the manufacturer.
